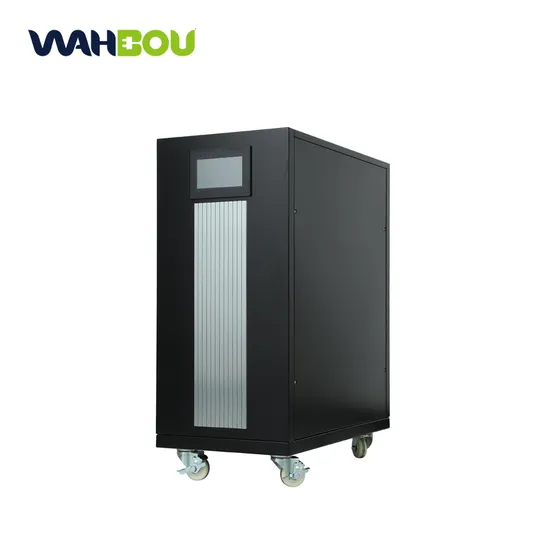

Wahbou Low Power Td3310kVA UPS 10000va 20000va 30000va Online Low Frequency Uninterrupted Power Supply

US$1,695.00-1,795.00 1 Piece (MOQ)

Basic Info.

Model NO.
TD33 10KVA
Protection
All of Overvoltage, Short Circuit, Overcurrent etc
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Wahbou
Input Voltage Range
380V +- 25%
Working Frequency Range
40-70Hz(Settable)
Output Power Factor
0.8
Battery Rated Voltage
192VDC
Transport Package
Neutral Carton Box
Specification
830x455x1055mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year

Packaging & Delivery

Package Size
83.00cm * 46.00cm * 106.00cm
Package Gross Weight
218.000kg

Product Description

Wahbou low Power TD3310KVA UPS 10000VA 20000VA 30000VA Online LOW Frequency Uninterrupted Power Supply
Our Advantages
Product Description
Product Parameters
Model TD33 10KVA TD33 15KVA TD33 20KVA TD33 30KVA TD33 40KVA TD33 60KVA TD33 80KVA TD33 100KVA TD33 120KVA TD33 160KVA TD33 200KVA TD33 250KVA TD33 300KVA TD33 400KVA TD33 500KVA
Rated Power 10kVA/ 8kW 15kVA/ 12kW 20kVA/ 16kW 30kVA/ 24kW 40kVA/ 32kW 60kVA/ 48kW 80kVA/ 64kW 100kVA/ 80kW 120kVA/ 96kW 160kVA/ 128kW 200kVA/ 160kW 250kVA/ 200kW 300kVA/ 240kW 400kVA/ 320kW 500kVA/ 400kW
Main Input Rated Voltage and Range 380Vac ±25%
Input Form 3P4W+G
Frequency Range 40Hz-70Hz (settable)
Bypass Input Rated Voltage and Range 380Vac ±25%
Input Form 3P4W+G
Output Rated Voltage 380Vac ±25% (line voltage)
Output Form 3P4W+G
Static Voltage Accuracy ±2%
Dynamic Voltage Transient ≤9%
Distortion of output voltage waveform ≤3%(liner),≤8%(non-liner) ≤3%(liner),≤5%(non-liner)
Power Factor 0.8
Output Frequency 50Hz/60Hz
Output Overload 105%±5%≤ Load: Overload warning;
105%±5%<Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%<Load≤150%±5%: Convert to bypass output after 30s;
Load>150%±5%: Convert to bypass output after 500ms. 		110%≥30mins; 125%≥10mins; 150%≥1min
Battery Rated Voltage 192Vdc 384Vdc 480Vdc 768Vdc
Dimension (LxWxH) mm 830x455x1055 830x515
x1135		 800x700x1600 880x850x1650 870x1300x1850 1420x908x1650 1630x1026
x1902		 2100x1100
x2000
Weight 218kg 208kg 208kg 243kg 309kg 506.5kg 521.5kg 800kg 800kg 1099kg 1243kg 1200kg 1240kg 2600kg 3660kg
Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and You are Welcom to visit us anytime!
