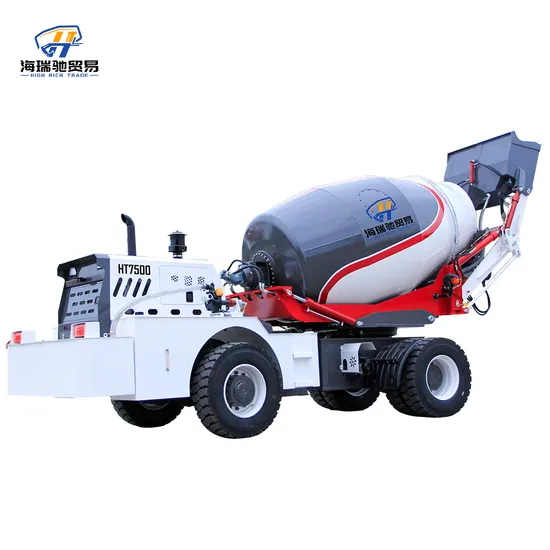

Portable 3.5m³ Self Loading Concrete Mixer Truck Drum and Cab Slewed 270° Self Loading Cement Mixer Truck for Construction 2024

Product Description

Product Description
The self-loading concrete mixer is a device that combines the functions of an existing concrete transport truck and a mixing station. It can automatically feed, measure, mix and unload concrete mixtures. It can mix while feeding, shortening the mixing time. Accelerate efficiency. The self-loading concrete mixer is equipped with a powerful engine and four-wheel steering, which provides high traction and helps the machine work in very soft clay site conditions. It is very convenient to load materials such as cement, aggregate, stone, etc. Raw materials are scattered on the construction site , with a self-loading mixer, you will never have to worry about transporting ingredients.
Efficient self-loading concrete mixers require only one operator to drive, load and mix raw materials on the move. With higher work efficiency and higher mixing effect. At the same time, labor costs and working hours are greatly reduced. A self-loading concrete mixer can bring you huge benefits. Compared with traditional mobile concrete mixer trucks, self-loading mobile cement mixer trucks are more flexible.
Due to its shape, it is often called a snail car. These trucks are equipped with cylindrical mixers to transport concrete mixtures. During transportation, the mixing tank will always keep rotating to ensure that the transported concrete does not solidify. After the concrete is transported, the inside of the mixing drum is usually flushed with water to prevent the hardened concrete from taking up space and making the mixing drum smaller and smaller. The self-loading concrete mixer is a device that combines the functions of an existing concrete truck and a mixing station. The self-mixing concrete truck can automatically load, measure, mix, and unload materials.
The vehicle is four-wheel drive, which enables the mixer to produce concrete under harsh working conditions and ensures work efficiency.
The aggregates are weighed during the loading process to ensure that the required concrete is produced, improve production efficiency
Product Parameters

Overall Parameter
Model	HR6500L
Dimension (L×W×H)	7150*2640*4330mm
Weight	11000 kg
Performance
Mixing Drum Capacity	Drum Capacity 6500L,Concrete Output: 3.5m³ Per Batch
Production Speed	Production speed: 7tanks/h
Traveling Speed	Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4*4
Water Tank Capacity	1000L
Diesel Tank Capacity	200L
Hydraulic Oil Tank Capacity	200L
Gearbox	315 separated type
Drive axle	3.0T wheel side decelerationbridge
Tires	16/70-R22.5 double tires
Bucket capacity(m3)	0.65
Mixing capacity(m3)	≥3.8
Reduction ratio	0.113194444
Rotating speed(laps/minute)	≥ 15 laps/minute
Reducer	Made in China
Gradeabiliy	30°
Engine
Model	Yuchai 6105 supercharged
Manufacturer	YUCHAI
Rated Power	92kw
Emission standards	Euro II

The self-loading concrete mixer is a device that combines the functions of an existing concrete transport truck and a mixing station. It can automatically feed, measure, mix and unload concrete mixtures. It can mix while feeding, shortening the mixing time. Accelerate efficiency. The self-loading concrete mixer is equipped with a powerful engine and four-wheel steering, which provides high traction and helps the machine work in very soft clay site conditions. It is very convenient to load materials such as cement, aggregate, stone, etc. Raw materials are scattered on the construction site , with a self-loading mixer, you will never have to worry about transporting ingredients.
Efficient self-loading concrete mixers require only one operator to drive, load and mix raw materials on the move. With higher work efficiency and higher mixing effect. At the same time, labor costs and working hours are greatly reduced. A self-loading concrete mixer can bring you huge benefits. Compared with traditional mobile concrete mixer trucks, self-loading mobile cement mixer trucks are more flexible.
Due to its shape, it is often called a snail car. These trucks are equipped with cylindrical mixers to transport concrete mixtures. During transportation, the mixing tank will always keep rotating to ensure that the transported concrete does not solidify. After the concrete is transported, the inside of the mixing drum is usually flushed with water to prevent the hardened concrete from taking up space and making the mixing drum smaller and smaller. The self-loading concrete mixer is a device that combines the functions of an existing concrete truck and a mixing station. The self-mixing concrete truck can automatically load, measure, mix, and unload materials.
The vehicle is four-wheel drive, which enables the mixer to produce concrete under harsh working conditions and ensures work efficiency.
The aggregates are weighed during the loading process to ensure that the required concrete is produced, improve production efficiency .
Designed By Italy,Automatic Feeling & mixing system.
Sample Operation.
High Active Production,Time and Labor Cost Saving.
Certifications

Mixer truck & Loading Car Combined together.
1. Self loading concrete mixer, which can save 3 labour and 100 kw.h every day, because it don't need mixer, concrete truck and loading machine.
2. The cab operating table can be rotated, and the mixer can drive bi-directionally It is more convenient.
3. The dumping function can make the unloading more thorough and faster.
4. It is more convenient and quicker to add water with the self-suction pump.
Our Advantages
The self-loading concrete mixer is a device that combines the functions of an existing concrete truck and a mixing station. The self-mixing concrete truck can automatically load, measure, mix, and unload materials.
FAQ

FAQ
1.Are you manufacture or trading company ?
we are a group company , include five middle-sized factory ,one high technology developer company and a professional internation trade company. Supply from design - production - publicity - sell -after sell work all the line service team .
2.What's the main products ?
mainly support construction machinery , such as loader , skid loader , excavator , mixer , concrete pump , road roller , crane and etc.
3.How long is the warranty period ?
Normally , products have one year guarantee period .
4.What is the MOQ ?
One set .
5.What's the policy for the agents ?
For agents ,SITC supply the dealer price for their area , and help to do advertising in their area , some exhibitions in agent area also be supplied . Each year , service engineer will go to the agents company to help them tread the technical questions.
6.What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

---
