Oil Country Lathe Big Bore Pipe Machine Lathe Q1343 for Heavy Duty Metal Threading

Product Description

This exquisite series of pipe thread lathes is artfully engineered to masterfully process both internal and external threads of pipes, while also functioning seamlessly as ordinary lathes. They are proficient in crafting the outer circle, inner hole, and end face of shafts, pipes, and disc parts. Revered across the petroleum industry, these machines are indispensable for processing and rejuvenating drill pipes, joints, casings, and an array of parts. Their versatility extends to threading various pipelines and drill pipes in industries such as coal, chemical, water conservancy, geological exploration, and more.
√ The impressive big spindle bore combined with the innovative double chuck design allows for the secure clamping and processing of extensive diameter pipes, enabling superior operational flexibility;
√ The integral machine bed, constructed from high-strength iron, ensures unparalleled rigidity and precision, providing a robust foundation for all machining endeavors;
√ The ultrasonic frequency quenched guide-ways offer extraordinary wear-resistance, guaranteeing the durability needed for intensive machining operations;
√ Featuring a sophisticated taper guide bar device, this machine is adept at processing taper threads with remarkable accuracy.
Double Chuck
The remarkable big spindle bore paired with the double chuck configuration empowers it to confidently clamp and meticulously process large-diameter pipes with unparalleled proficiency.
Quenched Guide
The ultrasonic frequency quenched guide-ways are designed to provide exceptional hardness, ensuring outstanding wear-resistance and longevity for enduring performance.

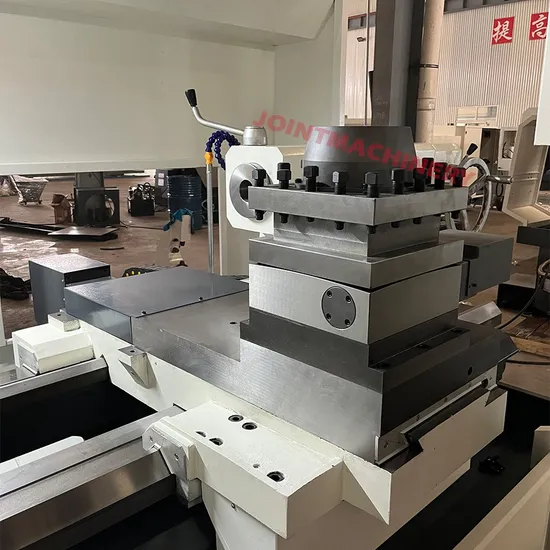

Tool Post Turret
Outfitted with a standard 4-station electric tool post, this system offers optional expansions to 6, 8, 10, or 12 station turret tools. This feature allows for swift tool changes with precision accuracy, dramatically boosting operational efficiency.
Tailstock
Standard configuration includes a manual tailstock, with the option to upgrade to hydraulic or pneumatic tailstock systems, ensuring that operational requirements are met with flexibility and ease.
Oil Country Lathe Big Bore Pipe Machine Lathe Q1343 for Heavy Duty Metal Threading

Item		Unit	Q1343
Max diameter swing over bed		mm	1000
Max diameter swing over cross slide		mm	610
Max length of workpiece		mm	1500
Width of bed		mm	755
Spindle bore		mm	440
Power of spindle motor		kw	22
Spindle speed		r/min	VF2 step 23-260
Z axis feed grade/range		mm/r	32/0.1-15
X axis feed grade/range		mm/r	32/0.05-0.75
Carriage rapid traverse speed		mm/min	3740
Cross slide rapid traverse speed		mm/min	1870
Metric thread grade/range		mm	23/1-15
Inch thread grade/range		T.P.I	22/28-2
Traverse of cross slide		mm	520
Max traverse of turret		mm	300
Tailstock quill travel		mm	300
Tailstock quill diameter/taper		mm	Φ140/MT6#
Chuck			middle Φ1000 4-jaw electric chuck
Dimension		mm	5000*2100*1680
Net weight		T	13

Shenzhen Joint Machinery Co., Ltd. stands proudly as an industry leader in the manufacturing and exportation of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering dedication to excellence ensures that we provide not only high-quality machinery but also exemplary service to our global clientele. We uphold rigorous quality control and pursue relentless innovation to ensure our products consistently meet the highest industry standards. By integrating state-of-the-art technologies from Taiwan and Germany with advanced production equipment and methodologies, we deliver products that exemplify unmatched quality and reliability. Our machines are renowned for their remarkable precision, stability, and reliability, excelling in addressing complex and demanding machining needs. With a wide-reaching global presence across Asia, Europe, South America, North America, and beyond, our products enjoy widespread acclaim and popularity. We have established enduring partnerships with clients from around the world, working together to create significant business value.

---
