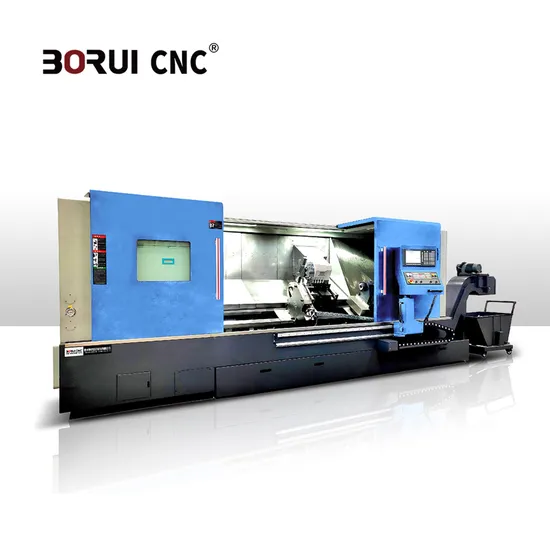

Br-25ha Inclined Rail CNC Lathes Large Swing Diameter Metal CNC Lathe for Sale

Product Description

BR-25HA Cnc turning machine Hard rail incline cnc lathe machining for metal

Product Description
Features:
The X and Z guide rails are all hard rails.
30 ° inclined bed structure, which has the best processing stability, and in addition to scrap more easily;X, Z axis for wide embellish hardened rail track, with big span "design, when heavy cutting, more highlights the unique stability, the hardening treatment and precision grinding with artificial shovel; Lathe bed used HT300 cast iron is a integrated, high rigid structure.
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing. Product Parameters

BR-25H(A)
	Item	BR-25H- 750	BR-25HA-750	BR-25H- 1000	BR-25HA-1000	BR-25H- 1500	BR-25HA-1500	BR-25H- 2000	BR-25HA-2000	BR-25H- 3000	BR-25HA-3000
Main Parameter	Max. swing diameter over bed	Φ730
	Max. machining diameter	Φ640(Only 440 cutterhead)
	Max. swing diameter over cross slide	Φ440
	Max. processing length	740mm	680mm	1020mm	960mm	1640mm	1580	2240	2180	3140	3080
Spindle And Chuck	Spindle end type	A2-8	A2-11	A2-8	A2-11	A2-8	A2-11	A2-8	A2-11	A2-8	A2-11
	Optional chuck(optional accessories)	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")
	Spindle motor power	22-30KW
	Spindle speed	2500rpm	1800rpm	2500rpm	1800rpm	2500rpm	1800rpm	2500rpm	1800rpm	2500rpm	1800rpm
	Spindle bore	Φ87	Φ102	Φ87	Φ102	Φ87	Φ102	Φ87	Φ102	Φ87	Φ102
	Through the bar diameter	Φ75	Φ91	Φ75	Φ88	Φ75	Φ88	Φ75	Φ88	Φ75	Φ88
Feed	X/Z axis lead screw specification	4008/5010
	X/Z axis linear guide specification	Hard Way
	X/Z axis limit travel	330mm/940mm		330mm/1240mm		330mm/1840mm		330mm/2440mm		330mm/3340mm
	X/Z axis motor torque	22 N.M/22 N.M
	X/Z axis connection type	Direct connection
Turret	Turret	NC125,SH125
	Tower station	10T/12T
	Turret center height size	125mm
Tailstock	Sleeve diameter	100mm
	Sleeve travel	80mm
	Tailstock max.travel	785mm		1085mm		1685mm		2285mm		3185mm
	Tailstock sleeve taper	MT5
Overall Dimension	Bed type and inclination	Integrated/30°		Integrated/30°		Integrated/30°		Integrated/30°		Integrated/30°
	Machine size(L * W * H)	2940/1503/1554		3240/1503/1554		3840/1503/1554		4440/1503/1554		5340/1503/1554

Details Display

Packaging & Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
