Plastic Film Recycling Plant PP PE Woven Bags Crushing Washing Machine

Product Description

Plastic Film Recycling Plant PP PE Woven Bags Crushing Washing Machine
Retech is a professional manufacturer of plastic recycling machinery in China.With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality. We warmly welcome customers all over the world to visit our factory.
Product Overview
Our plastic washing recycling machines are designed to reprocess waste plastics. With advanced design and rich experience in the plastic recycling industry, we can supply the plastic film washing machine in capacity 300kg/h-1500kg/h and the plastic bottle washing machine in capacity between 500kg/h to 3000kg/h. We also could provide specific custom washing and recycling solutions based on the raw materials nature and your application requirements.
Plastic Washing Machine:
1. The plastic film washing line is widely is used to crush, wash, dewater, dry and recycle plastic films like agriculture film, bags, PP woven bags and so on.
2. With complete pp pe film washing line, clients can make dry, clean film scraps from wasted material.
3. The whole pp pe film washing line could be "L" or "U" shape according clients' workshop.
4. Low energy consumption, as well save the cost.
5. The last moisture of our produce can be 3%-5%.Normally drying system moisture is about 10%-15%.And at the same time,our drying system can save about 60KW for you compare with the original drying system.

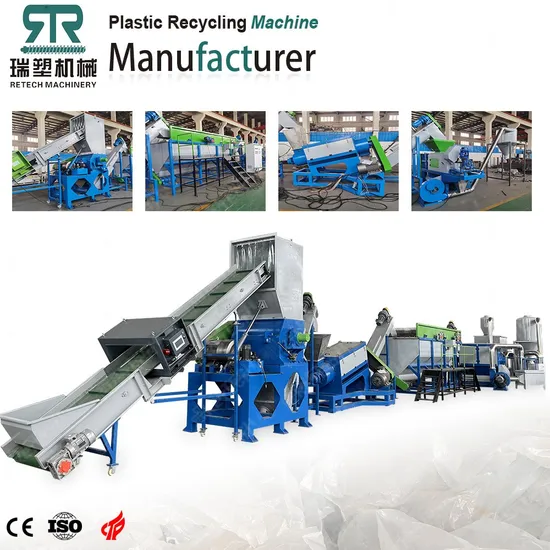

Product flowchart
The LDPE PP PE HDPE Film Washing Recycling Machine Processing:
1.Belt Conveyor 2.Wet Crusher 3.Screw Conveyor 4.Floating Washing Tank 5.Screw Conveyor 6.High Speed Friction Washer 7.Screw Conveyor 8.Dewatering Machine 9. 1st Drying System 10.Transition Silo 11. 2nd Drying System 12.Storager Silo 13.Electric Cabinet
Our Machine:
Detail Description:
Plastic Film Washing line is designed for process and wash waste plasttic thin film with contaminations.
New grinder rotor shape to crush film in higher capacity.
Film squeezer machine for ensure get a lower mosture.
Final film humidity in 3%-5%.
Easy operation with low consumption. Product Specification
Now I show you some parameters of our PP PE washing machine, If you need more details, pls contact with me.

Model	Capacity	Installed Power	Hot Washing	Water Supply	Area Required(L*W*H)
RM300	300 kg/hr	200 kw	Optional	6-8 m3/hr	40*4*5 m
RM500	500 kg/hr	350 kw	Optional	8-10 m3/hr	40*4*5 m
RM1000	1000 kg/hr	600 kw	Optional	15-20 m3/hr	55*6*6 m

Detailed Photos
1.Crusher
(1)20-40% additional output, 15% additional power saving.
(2)Blades are externally adjustable, material DC53 with cryogenic treatment, a longer service life.
(3)Special blade arrangement for PE PP film/bag.
(4)Anti-wear machine housing, replaceable wear plates. Installed between wall and spindle, prevents the friction of the spindle after a ling period of operation, which leads to the increase of sealing clearance and leakage.
(5)Heavy-duty bearings, oversized external bearing housings.
(6)More convenient housing opening way. Electrical screw control screw control or Hydraulic control.
(7)User-friendly design to change screen.

2.Floating Washing Tank
(1)Unique reverse discharge method and scientific wheel combination, uniform discharge, no blocking.
(2)Flat-type wheel blade design, plus efficient crushing of crusher,no long material is generated, no material entanglement.
(3)Bottom screw drainage design makes daily maintenance more convenient.
(4)The transmission device is externally equipped with a protective cover. The level of the tank body is raised, no water & material splashes, keep the factory clean.
(5)Can design floating washer for sinking & floating materials co-use to meet customer's multi-purpose needs and save investment.
3.High speed friction washer
(1)The friction washer applies the corresponding blade hitting force to different materials at the most suitable rotation speed to achieve the best washing effect
(2)The part with water is used for 304 stainless steel
(3)During the high-speed rotation,separate impurities from raw material
(4)Impurities are discharged through the small mesh in the screen.

4.De-watering Machine
(1) Remove the water from the plastic flakes, the finale moisture is less than 5%.
(2) Rotary Speed:1440rpm
(3) The part contact with water is made of SUS304

5.Silo
(1) Easy to collect the final output material, can be customized to your use requirements, with hooks to hang the jumbo bag or other collection containers.
(2)Hydraulic cylinder design make full use of jumbo bag loading space
(3)Each hook can bearing 500kg
(4)Stainless steel inner to protect the final products quality

6.Electrical Cabinet
(1)International brand Low voltage components
(2)Double circuit safety relay
(3)Intelligent and modular PLC controlling system

Company Profile
Related products
Loading container

Sales Service
THE AFTER-SALE SERVICE OF RETECH MACHINE! 1.After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2.After the commissioning, we will package the equipment by standard export package for shipment.
3.According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4.Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

---
