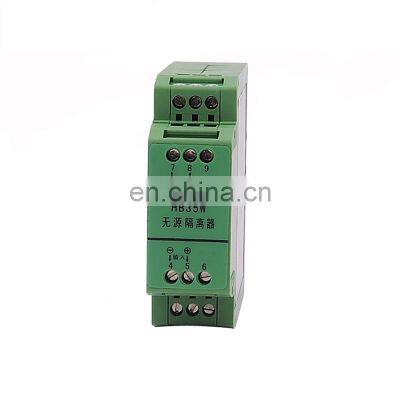

HB35W passive isolator 4-20mA signal isolation module converter safety gate isolation gate

Product Description

Product Description
HB35W passive isolator 4-20mA signal isolation module converter safety gate isolation gate
Product Description
DIN rail installationNo external power supply is requiredComplete isolation of input and outputDigital circuit, higher accuracy, small temperature drift
Specification
1. Input signal: 4 ~ 20mA2. Output signal: 4 ~ 20mA3. Isolation voltage: AC1000V, lasting 1 minute4. Precision: 0.5%FS5. Precision: 0.5%FS6. Load capacity: not less than 500 Ω7. Operating environment: 0 ~ 50℃; 0 ~ 85%RH(no condensation)8. Installation method: DIN35mm guide rail
Packing & Delivery
carton
