Phenolic Foam Air Duct Panel

US$4.50 100 Square Meters (MOQ)

Basic Info.

Model NO.
Air Duct Panel
Surface Finishing
Aluminum Foil Embossing
Panel Thickness
10-30mm
Aluminum Thickness
0.08mm
Function
Fireproofing
Usage
External Wall, Interior
Certification
CE, ISO
Thickness
20mm
Width
1200mm
Certificate
ISO, SGS, Bs
Transport Package
10PCS/Package
Specification
1
Trademark
W. T
Origin
Jiangsu, China
HS Code
3920940000

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 2.00cm
Package Gross Weight
0.500kg

Product Description

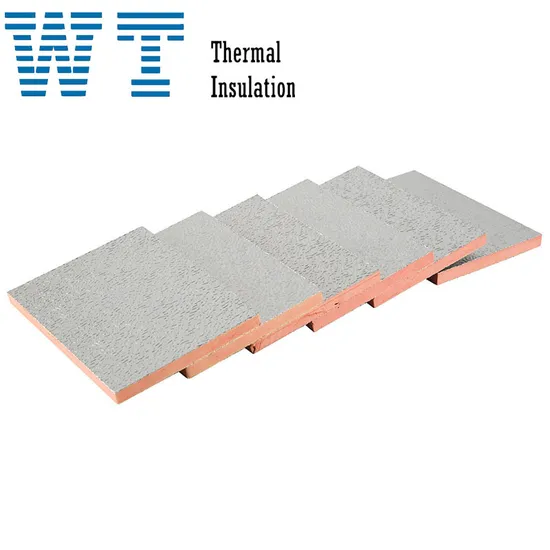

Phenolic foam air duct panel
Size: 1200mm(W)*3000/4000mm(L)*20mm (H)
Material: Front and back: 80 microns anti-corrosion coating embossed aluminum foil
Core material: Phenolic foam
Fireproofing
Colors: Red, pink, yellow, green or as your requirement. Detail information welcome to contact us.
Technical Data Sheet of Phenolic Foam pre-insulated air duct panel
ITEM UNIT SPECIFICATION
Density kg/m3 40-60
Double side Aluminum thickness mm 0.08
Total thickness mm 20
Thermal Conductivity w/m. k 0.02
Flexural Strength Mpa 1
combustion property ~ Non-combustible Class A
Water Absorption Rate % 1.9
Max Smoke Density % 2
Dimension Change Rate % 0.3
Compressive Strength Mpa 0.25
Service Temperature ºC -250 ~150
Standard Size mm 3000(4000)*1200*20

Appilications:
Various certificates:
