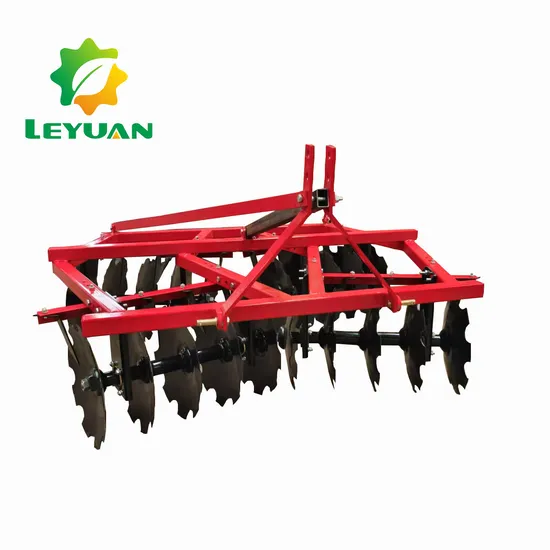

Box Frame Disc Harrow Tandem Opposed Disc Harrow

Product Description

Product Description
1BQD series of opposed light disc harrow for 30-80hp farm tractorIt is designed and manufactured by our company combined with the foreign technology,mainly used for crushing and loosening the soil after tillage,planting the field before seeding and mixing the soil and fertilizer,etc.
It features on reasonable structure,firmness for long-lasting operation,easiness to be handled and maintained,even field after tillage without deflective trailed force and so on.
It is a mounted opposed light disc harrow for 30-80hp tractor.
High efficiency,strong ability of soil pulverization.
The working depth of this disk harrow can be adjusted freely though adjust the angle between the disc frame.
Product Parameters

Model	1BQDX-1.3	1BQDX-1.6	1BQDX-2.0	1BQDX-2.4	1BQDX-2.8	1BQDX-3.0
Working Width (mm)	1300	1600	2000	2400	2800	3000
Working Depth (mm)	140
Disc Dia.(mm)	460
Disc Qty	16	20	24	28	32	36
Weight (kg)	330	390	460	560	600	650
Tractor power (hp)	35-40	40-45	50-60	60-75	75-85	85--100
Linkage	Mounted
