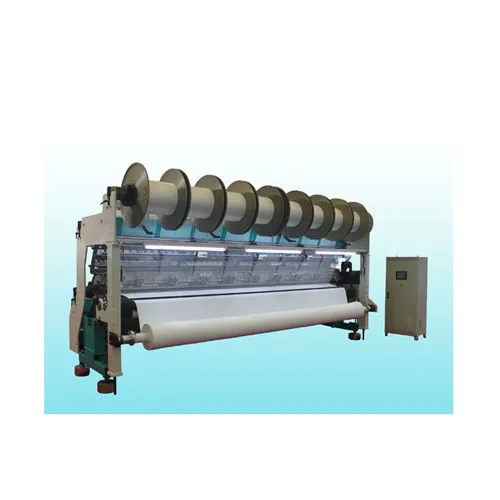

Tricot Machine Warp Knitting Machine for Apparel and Upholstery

Product Description

Easy operation and high-efficiency touch screen interface weft insertion machine are mainly used in technical textile fields for the production of industrial fabric, e.g. backlit, interlining, geogrid, etc. The main feature of the weft insertion machine is high efficiency via wide width of machine and wide band of weft yarn. The electrically controlled system makes the operation efficient and accurate.
The application of different yarn from mono polyester to the fancy yarn which brings the unique feature of the fabric. Weft insertion machine gauge starts from E6 up to E32. The EL device makes pattern changing extremely convenient and faster.
We make a weft insertion machine from 2bar to 4bar with a wide width range from 130 inches to 290 inches. The concept of our machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via the internet for better production management.

FABRIC SPECIFICATIONS
Working width	130",186",218",268",280"
Bar	2,3,4
Gauge	E24,E28,E32
BARS/KNITTING ELEMENTS
Individual needle bar	carbon bar	standard
Tongue bar	carbon bar	standard
Sinker bar	carbon bar	standard
Ground bar	carbon bar	standard
Jacquard bar	pizeo jacquard control system
WARP BEAM SUPPORT
Free standing	application 30"/40"beams
MACHINE DRIVE AND CONTRO
Main motor	invertor regulated control	standard
WARP LET-OFF DEVICE
EBC	electric control	standard
CLOTH TAKE-UP DEVICE
EAC	electric control	standard
BATCHING DEVICE
Electric	integrated centrally driven	standard
Brushing device for terry towel		optional
Batching diameter
PATTERN DRIVE
Pattern disc		standard
EL	via electric motor	optional
MONITORING&SOFTWARE
HMI	monitoring and reporting via display	standard
Cotex Suite		optional
OIL SUPPLY
Heater exchanger	heating and cooling	optional
SAFETY
Light curtain	depending on country of delivery	optional

---
