Plastic Manufacturing Machinery for HDPE Spiral Wound Pipe

Product Description

PE/HDPE/PP spiral winding water storage tank wells Pipes extruding production machine line
HDPE large diameter hollow wall spiral pipe extrusion line.
HDPE Structural wall winding pipe extrusion line.
*Double-walled corrugated pipes, with "H" structure.
*DN200-DN4000mm
*SN2, SN4,SN8,SN12.5, SN16
**HPDE extrusion spiral winding sewer pipes Appication:
- Sewage and drainage pipes
- Storm water drainage pipes
- Rain water sewage plastic pipes
- Cable protection pipes
- Civil construction sewage pipes
-Chemical storage tank
- Liquid storage tank
- Manhole wellbore
1. HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

2. HDPE large diameter hollow wall winding pipe machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.
3. Technical parameters:

Model	SMSG-800		SMSG-1200		SMSG-1600		SMSG-2200/2400		SMSG-3000/4000
Extruder	SJ65	SJ55	SJ90	SJ65	SJ100	SJ75	SJ120	SJ90	SJ150	SJ100
Output capacity	250-300kg/h		350-400kg/h		500-600kg/h		750-850 kg/h		1000-1500 kg/h
Pipe diameter	200-800 mm		400-1200 mm		800-1600 mm		1200-2200 mm 800-2400mm		2000-3000mm 2000-4000mm
Production speed	2-16 m/h		2-12 m/h		1-6 m/h		0.5-5 m/h		0.3-3 m/h
Installed Power	180 kw		250 kw		300 kw		400 kw		500 kw

4. Machine Pictures:

Mass production of hollow-wall Spiral winding pipes extruion Machines

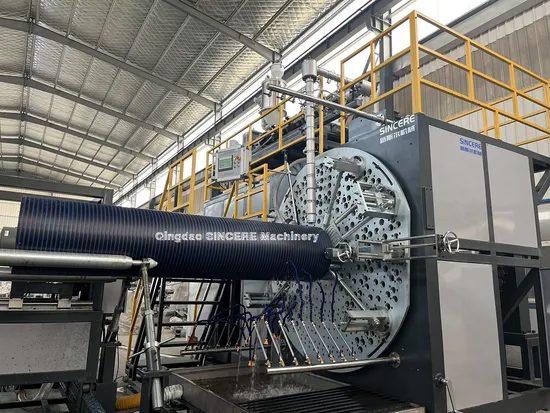

Testing HDPE Hollow wall winding pipe production line in our factory
Spiral corrugated pipes extrusion production line, inner with ribs reinforced.
Solid wall spiral winding pipe, storage tank extrusion production machine lines.
Steel reinforced HDPE extrusion spiral sewage wining pipe extruding machinery lines.
