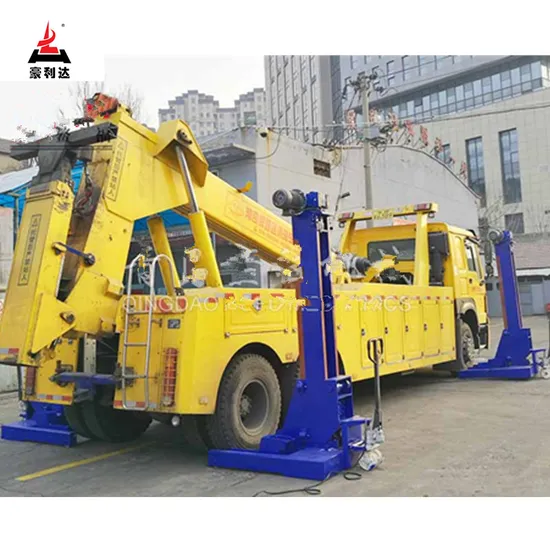

High Quality Four Post Bus Lift

Product Description

High Quality Four Post Bus Lift
General introduction:
This column lift is suitable for bus companies, truck repair factories, service stations,etc.

Feature:
1. The distance between the columns is adjustable, it is easy and convenient to use
2. With large carring capacity
3. Colum track uses section steel, they can run more smoothly
4. Lifting bracket inside orientation, bearing large capacity
5. Open front design for easy under-vehicle access
6. Personalized design,reasonable aesthetic
7. Can be controlled together or single
8. Can be used in different vehicles'maintenance from 1ton to 40tons
9. Double nuts,and with height limit ,more safety

Technical parameter:

Model no	HLD-QJJ20-4B	HLD-QJJ30-4B	HLD-QJJ40-4B
Lifting capacity (t)	20	30	40
Lifting heigth(mm)	1700
Lifting speed (mm/min)	600
Motor power(kw)	2.2kw*4	3.0kw*4	3.0kw*4
Input voltage(V)	380V/220V
Output speed (r/min)	50
Weight (t)	2.1	4	4
Effective span (mm)	3200

Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance be paid before delivery
Delivery time	30 days after receiving downpayment
HS code	8425429000
Packing sizes	Carton box

Why Choose us:
1. 32 years' design,development and produce experience
2. Professional R&D team
3. Strict QC
4. A good pre-sale and after-sale service
5. Can design and make according to customer's requests

---
