S5735I-S8U4XN-V2 98012066 Managed Poe Switch with 8*10/100/1000base-T Ports, 4*10ge SFP+ Ports

Product Description

Product Description
S5735I-S8U4XN-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless)

Part Number	98012066
Model	S5735I-S8U4XN-V2
Description	S5735I-S8U4XN-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless)

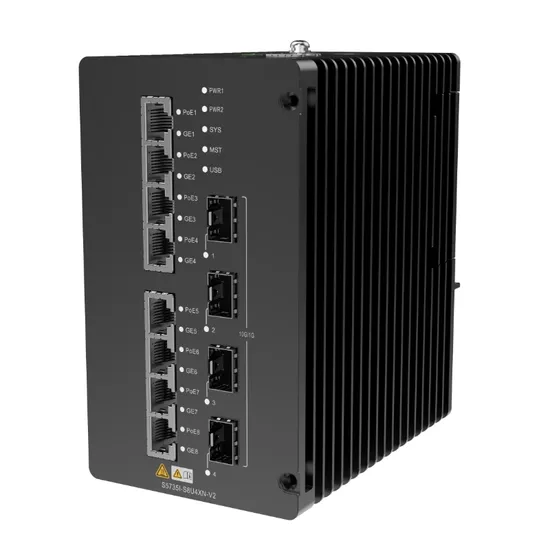

Detailed Photos


Product Parameters

Technical Specifications
Chassis material	Metal
Height [mm]	150.0 mm
Depth [mm]	133.0 mm
Wide [mm]	86.0 mm
Chassis height [U]	3.65
Weight with packaging [kg(lb)]	2.21 (4.87)
Weight without packaging [kg(lb)]	1.86 kg (4.1 lb)
Maximum power consumption [W]	- Without PoE: 21.7 W - Full PoE load: 421.7 W (PoE: 400 W)
Typical power consumption [W]	20.45
Heat dissipation mode	Natural heat dissipation
Maximum heat dissipation [BTU/hour]	- Without PoE: 74.01 - Full PoE load: 1438.11 (PoE: 1364.10)
Typical heat dissipation [BTU/hour]	69.74
Power supply mode	DC external
Input voltage range [V]	DC input: 54 V DC to 57 V DC (PoE/PoE+/PoE++) 48 V DC (PoE)
Rated input voltage [V]	DC input: 56 V DC
Maximum input current [A]	8.0 A
Number of power slots	0
Number of card slots	0
Memory	2 GB
Flash memory	Physical space: 1 GB
Redundant power supply	1+1 Note: If the PAC240S56-CN power module is used, one PAC240S56-CN can supply power to only one S5735I-S8U4XN-V2 at a time.
Types of fans	None
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans)
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans)
Airflow direction	-
Storage temperature [°C(°F)]	-40°C to +85°C (-40°F to +185°F)
Long-term operating temperature [°C(°F)]	0-1800 m (0-5906 ft.) altitude, industrial optical modules: - Sealed cabinet: -40°C to +60°C (-40°F to +140°F) - Vented cabinet (≥ 80 LFM): -40°C to +70°C (-40°F to +158°F) - Blower-equipped cabinet (≥ 200 LFM): -40°C to +75°C (-40°F to +167°F)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
MTBF [year]	89.43
MTTR [hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	12
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of GE ports	12
Maximum number of FE ports	8
10GE optical interface	4
1000M electrical interface	8
USB	Supported
Console port	RJ45
Eth Management port	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection	DC power: ±2 kV in common mode and ±1 kV in differential mode
RPS input	Not supported
PoE	Supported
PoE power supply	Supported
