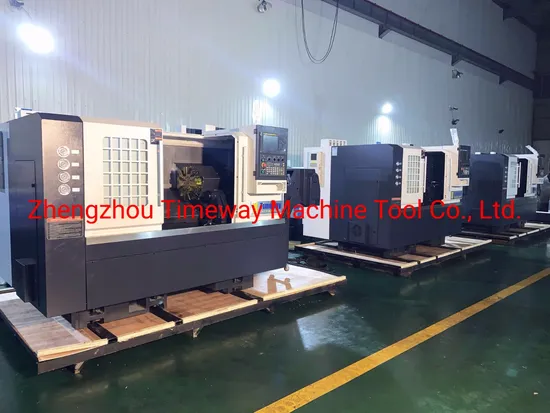

Slant Bed Type CNC Lathe Machine/CNC Lathe

Product Description

Features:
1.This machine is suitable for turning of shaft, and disc type workpieces with high accuracy and efficiency
2. Adopted 45° overall oblique-bed with hardened cast iron, chip removel smoothly, high rigidity;
3. Assembled linear rolling rails with high rigidity, high positioning accuracy;
4. 12 station hydraulic tool post,changing tools nearby;
5. high speed, accuracy,rigidity spindle unit;
6. Hydraulic tailstock

Model	LA-45
Max. swing over bed	Φ450mm
Max. turning diameter	Φ360mm
Max. turning diameter over toolpost	Φ300mm
Max. turning length	400mm
Center distance	750mm
Spindle nose	A2-6
Chuck size	8"
Max. spindle speed	5000rpm
Spindle bore	57mm
Rapid speeds of X/Z-axis	3000/6000mm/min
X-axis travel	165mm
Z-axis travel	500mm
Tool turret	12 station servo tool turret
Diameter of tailstock quill	Φ65mm
Travel of tailstock quill	800mm
Taper hole of tailstock quill	MT4
Main motor power	7.5/11kw
Overall dimension (L×W×H)	3280×1700×1700mm
Machine weight	3950kg

Standard configuration/ Accessories:
CNC Controller: FANUC 0i TF Hydraulic solid chuck Max turning 300-360 mm Max turning length 400 mm Tool station turret min 12 ST Max spindle min 5000 rpm spindle nose A2-6 Index time max 0,15 s Lubrication system Tool box & tools Operation manuals (English version) Optional configuration/ Accessories: Hydraulic hollow chuck Auto. Chip conveyor
One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products


FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
