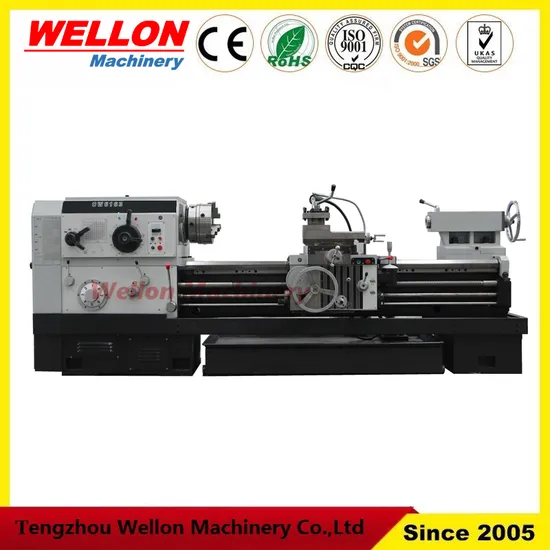

Top Quality Manual Lathe Machine Cw6163b/Heavy Duty Lathe Machine

Product Description

Detailed Photos

Product Parameters
CW6163 parallel lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.

Model		CW6163B
Max swing over bed	mm	630
Max swing over carriage	mm	350
Center distance	mm	3000
Spindle bore and type	mm	135
Spindle taper	mm	MT5
Spindle speed and range	R/min	18kinds 7.5-1000
Longitudinal feed	mm/r	64kinds 0.1-24.3
Cross feed	mm/r	0.05-0.76
Rapid moving speed	mm/min	4000
Metric thread	mm	50kinds 1-240
Inch thread	t/in	26kinds 14-1
Module thread	mm	53kinds0.5-120
Diametral pitch thread	DP	24kinds 28-1
Cross slide travel	mm	315
Top rest travel	mm	200
Tail stock sleeve travel	mm	250
Tail stack taper		MT5
Bed width	mm	550
Main motor power	kW	15
Moving motor power	kW	1.1
Coolant motor power	w	125
Machine width and height	mm	1450×1630
1500	mm	3690
2000	mm	4190
3000	mm	5190
4000	mm	6190
5000	mm	7190
Max loading capacity
1500	kg	2500
2000	kg	3000
3000	kg	3500
4000	kg	4000
5000	kg	4500

Standard Accessories :
3-jaw chuck
4-station tool holder
steady rest
follow rest
dead centers
reducing sleeve
coolant system
halogen work lamp
operating tools
Operator Manual.
Optional Accessories :
4-jaw chuck
Digital readout
chuck guard
Tool post guard
Back splash guard
Live center
