Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment

Product Description

Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment
Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment Introduction:

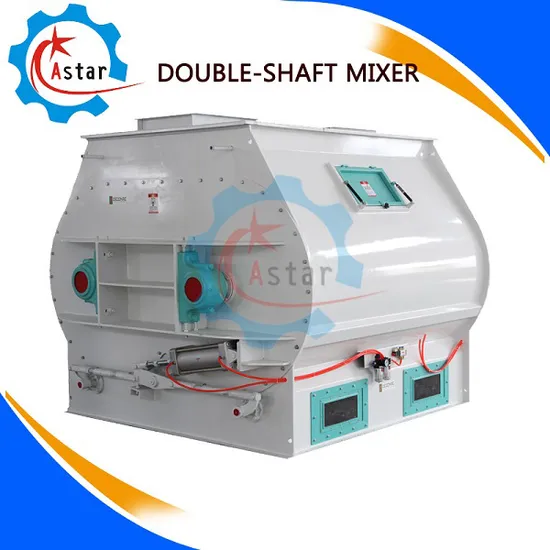

Feed paddle mixer /Double Shaft Animal Feed Mixer is a horizontal mixing device widely used for mixing grain powder in feed pellets production line . Its design is based on a U - type tank with dual shafts and paddles extending the length of the tank. The action of the pitched paddles moves material from the bottom and forces the material back down between the shafts, which will give a complete and homogeneous mixture of materials. Ideal mixing machine for homogeneous mixing of different ingredients in a shortest time (CV< 5%) irrespective of density, shape and size . Mixing time is 30-120s.
Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment Features:
1. Wide applied to feedstuff, food, chemical and fertilizer industry.
2. Short mixing period, 30-120s is enough for every batch of material.
3. High homogeneous degree, CV ≤5%, no material segregation.
4. Full-bottom type of material discharging, quick and less material residue.
5. Equipped with air return duct which ensure no powder leakage and protect working environment.
6. Atomizing nozzle can be customized if there is need to add molasses, oils & fats and other liquids.
7. Low energy consumption. 3/5 energy saving compared with other feed mixer.
8. Three materials discharging ways: manual operation, motor-drive and pneumatic discharging methods.
Feed Double Paddle Blender/High Speed Horizontal Type Animal Feed Mixing Machines Application:
1. Double feed blender achieves unmatchable effects for feed material mixing, addictive adding, powder material mixing, etc. It plays an irreplaceable role in the complete feed pellets production process.
2. Qiaoxing double paddle blender also has wide application in other industries such as chemical industry, mining industry, construction industry, seasonings industry, etc.
Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment Drawing :

Model	A(mm)	B(mm)	C(mm)
SSHJ1( 500KG )	1990	1445	1885
SSHJ2( 1000KG )	2500	1600	2170
SSHJ4( 2000KG )	2800	2000	3021

As for the outstanding advantages of Astar double paddle mixer for feed material mixing, the most important reason is the advanced structure design. The paddler mixer is of U type with two mixing shafts with evenly paddles. The paddles rotating in high speed makes the feed powder move in three directions: radial direction, circle direction and axial direction. With the all-pervasive mixing method, the feed powder can be in a homogeneous mixture in a very short time. If you want to add liquids to the powder, we can equip atomizing nozzle for you. High efficiency, homogeneous mixing and liquid adding make the double paddle mixer perfect choice for feed pellets powder mixing.


Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment Technical Data:

Model	Effective Volume	Mixing Volume	Mixing Time	Mixing Evenness(CV%≤)	Power(KW)
SSHJ0.5	0.5m³	250kg	30~120s	5	5.5/7.5
SSHJ1	1m³	500kg	30~120s	5	11/15
SSHJ2	2m³	1000kg	30~120s	5	15/18.5
SSHJ4	4m³	2000kg	30~120s	5	22/30
SSHJ6	6m³	3000kg	30~120s	5	37/45

Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment More Photos:
Any more information you need Qiaoxing Machinery Wholesale Animal Feed Mixing Equipment , please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China

---
