US$288.00-850.00
|
1 Set
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Applicable Industries
Building Material Shops, Manufacturing Plant
Transport Package
Pallets or According to Customer Requirements
Production Capacity
2500sets/Year
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1000.000kg
Product Description
Product Description

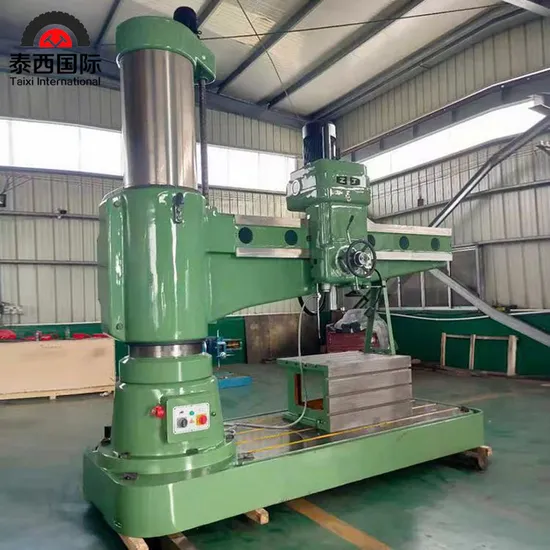

Z3032 Hydraulic Deep Hole Radial Drilling Machine
Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping, end face repair and other forms of processing. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops.
Radial drilling machine is widely used in single piece and small and medium batch production to process holes of workpieces with large volume and weight. The radial drilling machine has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large workpieces. The radial drilling machine is used to process small and medium-sized holes on heavy or porous workpieces. It is mainly composed of a base, a column, a rocker arm, a spindle box, a spindle worktable, etc. When the radial drilling machine works, the radial arm can rotate around the column, and the spindle box can move radially on the radial arm. In this way, the drill can be aligned with the axis of each hole to be machined for hole processing. It is flexible to use. Generally, the workpiece is clamped on the workbench when drilling. When machining large workpieces, the workpieces can be clamped on the base of the drilling machine. According to the different heights of the workpiece, after loosening the locking device, the rocker arm can move up and down along the column to make the headstock and the drill at the proper height.
Product Main Technical Specifications:
Specification | Z3032X10 | Z3040X14 | Z3050X16 | Z3063X18 | Z3080X20 |
Max drilling diameter (mm) | 32 | 40 | 50 | 63 | 80 |
Distance between spindle axis and coulumn(mm) | 170-1100 | 260-1210 | 350-1500 | 400-1600 | 550-1600 |
Spindle travel(mm) | 120 | 260 | 350 | 400 | 450 |
Spindle taper(morse) | MT4 | MT4 | MT5 | MT6 | MT6 |
Number of spindle speeds | 6 | 12 | 12 | 16 | 16 |
Steps of spindle feeds | 3 | 3 | 4 | 16 | 16 |
Radial ratation angle | 360 | 360 | 360 | 180 | 180 |
Main motor (kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
1:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
