Heavy Duty Pile Turner Equipment with Dust Removal/Vibrating/Blowing

Product Description

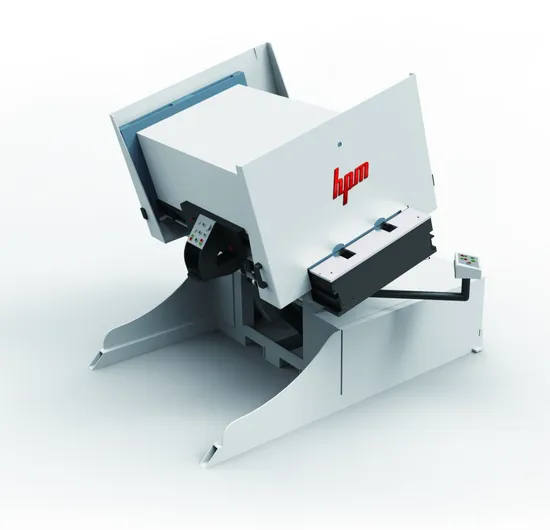

SFZ1300LA Heavy Duty Pile Turner Equipment With Dust Removal/Vibrating/Blowing

Design features:
Technical Parameter

Model	SFZ1300LA
Max. Width of plate	1300mm
Max. paper size(L*W)	1200*900mm
Min. paper size(L*W)	500*400 mm
Max. paper height(including two plates)	1600mm
Min. paper height(including two plates)	700mm
Max. Lifting capacity	2000kg
Rated voltage	380/220V
Gross power	12KW
Net weight	3400KG
Machine size(L*W*H)	2920*2020*2220mm
Packing size(L*W*H)	3100*2200*2100mm

Introduction to equipment functions
1.Automatic turning and rotation functions.
2.The touch screen has integrated different operation functions, and can be used for setting parameters directly, conveniently and quickly.
3.Auto and manual modes can be switched based on user's operation requirements.
4.The touch screen is integrated with functions such as turning, rotation, clamping, opening and flap alignment.
5.Servo backup plate is used to sense paper pile automatically and finish alignment of paper pile quickly.

Functions	Function Characteristics
Blowing	Stepless adjustment of air blowing + Settings of blowing times
Vibration	Stepless adjustment of vibration
Air Nozzle	Stepless adjustment of speed
Position selection	180° rotary feeding + Home position feeding
