CE Proved 3 Roller Taper Cone Roller Steel Metal Plate Cone Rolling Machine

Product Description

Product Description

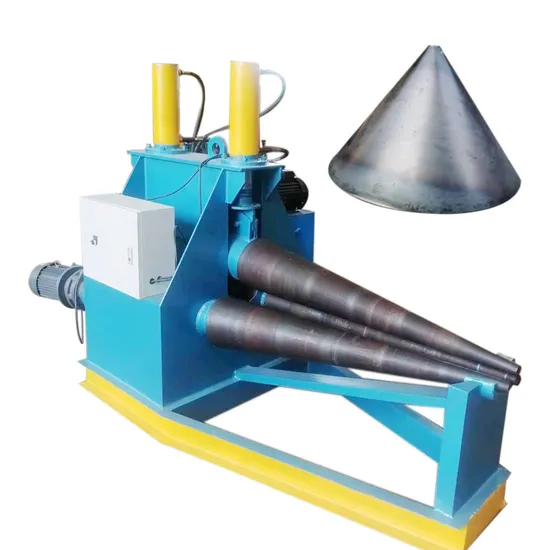

The plate rolling machine is a hydraulic three-roller cone plate rolling machine. The upper roller moves up and down at the symmetrical position in the center of the two bottom rollers, and adjustment power is obtained through hydraulic cylinder, and
front and rear parts can be adjusted freely to make cones of different sizes. The bottom tapered rollers are respectively driven by a motor reducer (or driven by twomotors) to provide power for the sheet metal to run. The machine is electric rolling and hydraulic pressing.
Note:Please confirm the plate thicknesss, diameter, length and material to recommed you suitable model.

Model	6*1300
Max bending sheet thickness	6mm
Adjust way	Hydraulic
Max processing capacity	Steel 8mm, stainless steel 5mm
Max motor power	2.2kw x3piece
Oil pump motor power	2.2kw
Total power	8.8kw
Roller quantity	3 solid rollers
R0ller length	2000mm
Roller data	Small DIA40mm,big DIA 1300mm
Measure	2800x1200x1600
Weight	2000kg

SALES AND SERVICE NETWORK
FAQ
1 how long have you been in this filed?
we have been in this filed for more than 15 years. 2 Do you have any Certification with product or your factory? yes, we have passed TUV certification with our product and factory. 3 where is your factory? we are in shandong province,it is about 150KM far from Qingdao port. 4 Can we be as your agent in our country? yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you.

---
