High-Performance Lifting Table Milling Machine with Nt30 Spindle, CNC Machine, Milling

Product Description

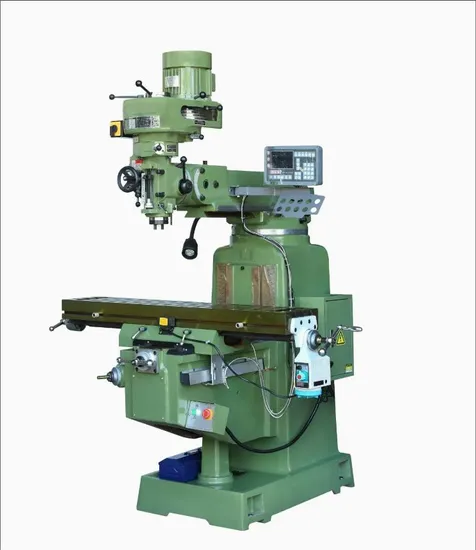

Introducing the 4s Vertical Lifting Table Milling Machine, a premier metal milling marvel originated in Taiwan. This cutting-edge apparatus is meticulously engineered to offer unmatched precision and efficiency in the art of metalworking, setting a new standard in the industry.
Product Description
Mechanical CharacteristicMeticulously crafted from Meehanna cast iron, this machine exudes remarkable rigidity and stability, ensuring unwavering resilience against deformation over time. This guarantees a steadfast and reliable performance that stands the test of time.The spindle, reinforced by a precision bearing combination, provides immense cutting force and extraordinary accuracy, empowering superior machining capabilities that meet the highest industrial standards.Showcasing an innovative inverted hanging configuration, the end milling head delivers exceptional precision, intuitive operation, and seamless braking. Customizable solutions are available for discerning customers seeking specialized features tailored to their unique needs.The three-axis screw nuts are constructed from premium phosphorus meter copper, offering unparalleled wear resistance and a significantly prolonged lifespan, ensuring durability and long-term performance.The XY shaft slide is subjected to high-frequency annealing treatment, boosting tail wear resistance and substantially extending its operational lifespan, ensuring lasting efficiency.An advanced integrated lubrication system guarantees smooth sliding and optimal performance, maintaining peak machine functionality.
Product Parameters
1.Milling Machine Rotation Speed
Rotation speed plays a pivotal role, directly impacting processing efficiency and the cutting force exerted. Higher speeds amplify cutting power, enhance surface quality, and reduce residual stress on manufactured parts, delivering superior results.
Milling Machine Cutting Speed Cutting speed is crucial for both processing speed and quality. The perfect speed varies depending on the material's hardness, cutter material composition, and machine type, ensuring optimal processing outcomes. Milling Machine Processing Accuracy Processing accuracy serves as a fundamental performance metric, significantly affecting machining and part quality. It is influenced by the cutting force, rigidity of the machine and tools, precision of workpiece clamping, and initial tool errors. Milling Machine Precision Stability Precision stability is vital, ensuring consistent machine accuracy during operations. It is affected by initial tool errors, deformities in the machine tool, and tool wear, playing a critical role in maintaining quality excellence.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
