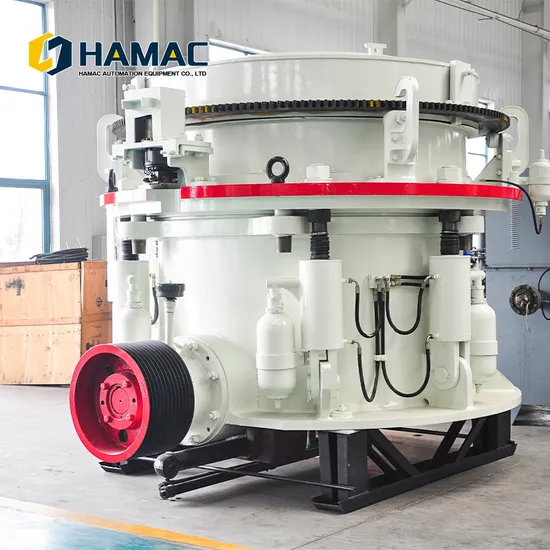

Mining Stone Crushing Hydraulic Multi Cylinder Hpt200 Cone Crusher Machine

Product Description

Cone Crusher is an advanced cone rock crusher which represents the domestic advanced technology level. For years, HAMAC has been using the US-developed advanced crusher technology. This series cone crusher machine can be widely used in metallurgical, construction, chemical and building material industry, suitable for hard and medium hard materials such as mine ore, limestone, quartz, granite, sandstone and so on. It is proven that the crusher with worldwide performance and reliable quality has gained the customers' praise. It is an ideal cone crusher the same as Symons cone crusher for sale.
HAMAC can provide you with spring cone crusher, HP hydraulic cone crusher and HST hydraulic cone crusher which is single cylinder.
FAQs of cone crusher for sale
Types and models of Symons cone crusher for sale we provide
For this S series Symons cone crusher, there are different types and models for sale. They are designed for different application.
According to the crushing cavity, there are two types cone crusher for sale. Standard cone crusher and short head cone crusher. Standard cone crusher is usually used as a secondary crusher, short head cone crusher is usually used a tertiary cone crusher to get smaller sizes aggregates and sand.
According to the cone crusher sizes, HAMAC can provide Symons 3ft cone crusher, 4.25ft cone crusher, 5.5ft cone crusher and 7ft cone crusher. Welcome your inquiry.
Advantages of hydraulic cone crusher
1. High efficiency: The cone crusher machine adopts the optimized structure of fixed main shaft and small spherical shaft, which is 5% ~ 15% higher than the efficiency of the old spring cone crusher for sale;
2. Large production capacity: The hydraulic cone crusher is designed with a perfect combination of crushing stroke, crushing speed and crushing chamber shape, so that the output of this machine is 35% ~ 60% higher than that of the old spring cone crusher under the same crushing cone size.
High-quality aggregate: The crusher cone adopts the unique lamination crushing principle to produce the crushing effect between different aggregates, so that the proportion of cubes in the finished product is significantly increased, the needle-shaped stones are reduced, and the particle size is more uniform.
4. More stable operation: When there are hard objects such as iron blocks that can not be broken into the cone crusher liner, the over-iron protection device will automatically release it and then reset it immediately.
5. Multi-point split hydraulic lubrication control system can ensure double protection of bearing lubrication and overload protection of the machine.

Model	Crushing Chamber	Standard type		Short heard type		Power (kw)	Capacity (t/h)
		Feeding opening (mm)	Min. Discharge opening (mm)	Feeding opening (mm)	Min. Discharge opening (mm)
HPT200	Extra Coarse(EC)					132-200	90-250
	Coarse(C)	185	19	76	10
	Medium(M)	125	17	54	6
	Fine(F)	95	13	23	6
	Extra fine(EF)			10	5
HPT300	Extra Coarse(EC)	230	25			180-250	115-440
	Coarse(C)	210	20		10
	Medium(M)	150	15	50
	Fine(F)	105	10	20	6
	Extra fine(EF)			20	6
HPT400	Extra Coarse(EC)	295	30			280-355	140-630
	Coarse(C)	250	25	90	10
	Medium(M)	195	20		8
	Fine(F)	110	14	40	6
	Extra fine(EF)			30	6
HPT500	Extra Coarse(EC)	330	30			355-450	175-790
	Coarse(C)	285	25	90	13
	Medium(M)	200	20	55	10
	Fine(F)	133	16	40	8
	Extra fine(EF)			35	6

---
