Custom Multi-Station Hex Flange Rivet Nut Bolt Cold Forging Machine

Product Description

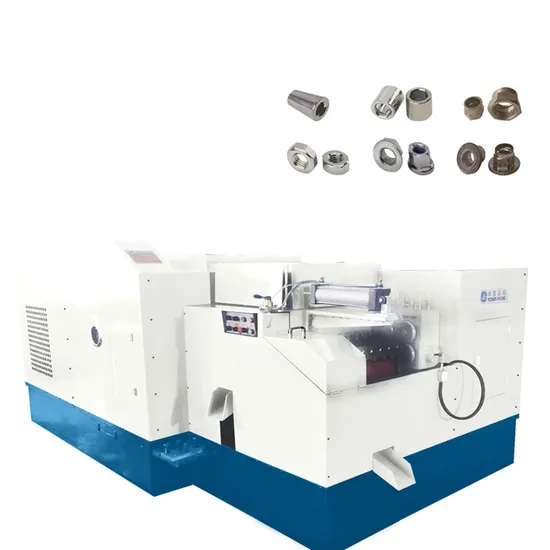

Multi-Station Hex Nut/Flange Nut/Rivet Nut /Bolt Nut Making Machine Nut Cold Heading Machine
Six station and seven station nut forming machine are available, both standard machine and Extended Nut Forming Machine. The equipment has good stability, long service life and high production efficiency. Machine can make various nuts such as: Normal hex nuts, Extra thick nut, Flanged nut, Motorcycle link pin, Oil Plug screw, Hex socket lockup nut, Square nut, Weld nut, Cap nut, Blind Nut, Chain roller, Expansion anchor, Bicycle and Motorcycle Spare Parts, Some rivets, Non-standard fastener, etc. We also offer customization service according to user product requirements.
Product Parameters

Specification/Model	Unit	WH-NF 11B6S	WH-NF 14B6S	WH-NF 19B6S	WH-NF 24B6S	WH-NF 33B6S	WH-NF 41B6S
Forging Stations	No.	6	6	6	6	6	6
Across Flats Of Nut	mm	5.5-12.7	10-17	14-22	17-26	24-33	30-41
Suitable Hex Nut	DIN	M3-M6	M6-10	M8-M14	M10-M18	M16-M22	M20-M27
Cut-Off Dia	mm	11	16	19	24	31	40
Dies Pitch	mm	50	60	80	100	140	165
Forging Power	Ton	60	90	135	230	360	450
Main Motor	Hp	15	20	50	75	150	200
Lubrication Motor	Hp	1.5	1.5	1.5 3	1.5 3	3	3
Installed Quantity	SET	(1)	(2)	(1)	(1) (1)	(2)	(2)
Lubricant	L	700	1000	1200	1700	1900	2200
Approx Weight	Ton	4.5	8	14	25	45	72

Product Range of Nut Making Machines Developed products include standard parts and non-standard parts, such as: Hexagon Nuts, Flange Nuts, Welding Nuts, Square Nuts, T-nuts, Rivets (hollow, semi-hollow) Nuts, Bushings, Sleeves, Four Claws Nuts, Nylon Nuts, Cap Nuts, Lock Nuts, Furniture Nuts, Automotive Fasteners Nuts, etc.
Product Description
Nut Cold Heading Machine 11B-41B
Nut Former 6-10 Stations

In order to provide more comprehensive and professional services to Ronen Wuhe clients, we also supply following accessory machines:
Certifications
Workshop Show

Nut Making Machine Factory Introduction
Ronen Wuhe is one special manufacture for producing Cold Forging Machines (Fastener Nut) in China. Have Taiwan Technology level engineers team, and with strict technical monitoring and production process,the plant area is 15000+. Cold Forging Machines / Nut Former produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, bearing producing, machinery, electronics, etc. industrial fields , we have big share in domestic market, and In recent years, we have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. counties. At present, the largest model can reach WH-41B6S, sizes from M3~M27, model from 11B~41B, 6 stations to 9 stations. PKO type and standard type.
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership."
Cooperative Customers

Customer Evaluation

Exhibition
FAQ
1. -Can your machinery produce non-standard parts?
-Yes, we can. Our machinery can produce non-standard parts, at the same time, we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.

---
