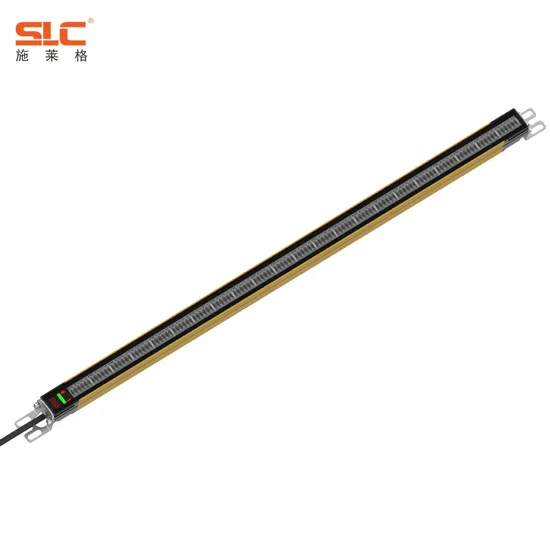

RS485 Serial Light Curtain Sensor for Object Size Measurement

Product Description

Functional Features:
3 scanning methods:
·Straight scan
·Single-edge scan
·Double-edge scan (1, 2, 4, 8, 16, or 32 steps)
20 measurement ("scan analysis") modes
2 analog outputs, 2 discrete outputs, plus Modbus 485-RTU serial output.
Excellent 5 mm minimum object detection or 2.5 mm edge resolution, depending on scanning method
Outstanding 4 meter range with 5 mm beam spacing, 3-digit display and 6 LEDs for sensing information and diagnostics,Software PC interface available for advanced configuration setup.
Remote teach wire option for alignment, gain settings, inverted display.

Technical Parameters
Electric Parameters
Supply Voltage(Limit Values)			Emitter: 12 to 30V dc Receiver Analog Current Models: 12 to 30V dc Receiver Analog Voltage Models: 15 to 30V dc
Supply Power Requirements			Emitter/Receiver Pair (Exclusive of Discrete Load): Less than 9 watts Power-up delay: 2 seconds
Scan Time			Scan times depend on scan mode and sensor length. See Table3.2 for all combinations.
Two Discrete Outputs			2-channel independent PNP/NPN transistor output Output drive maximum load: 150mA Pressure drop on output pipe: 2V@150mA
Two Analog Outputs			Voltage Sourcing: 0 to 10V (maximum current load of 5 mA) Current Sourcing: 4 to 20 mA (maximum resistance load = (Vsupply−3.5) / 0.020)
Scan Method			Straight Scan Single-Edge Scan Double-Edge Scan
Measure Mode			FBB,LBB,TBB,MBB,FBM,LBM,TBM,OD,ID,CBB,CBM,CFBB,CLBB,O1FBB,O1LBB O2FBB,O2LBB,O3FBB,O3LBB,TRN
Serial Communication Interface			EIA-485 Modbus RTU (up to 15 nodes per communication ring)RTU binary formatBaud Rate: 9600, 19.2K or 38.4K ,8 Data Bits, 1 Stop Bit and No Parity
Environmental Rating			IEC Ip65
Operation Temperature			-10~55ºC
Storage Temperature			-20~70ºC
Relative Humidity			15%~95%
Shocking			10g/20ms
Optical Parameters
Sensor Positional Resolution			Straight Scan: 5 mm, Double-Edge Scan: 2.5 mm, Single-Edge Scan: 2.5 mm
Detect Height			120~2400mm
Emitter/Receiver Range			0.1~4m
Optical Channel Number			24~480
Optical Channel Spacing			5mm
Field of View			±3°
wavelength			940nm
Synchrony			>10,000Lux
