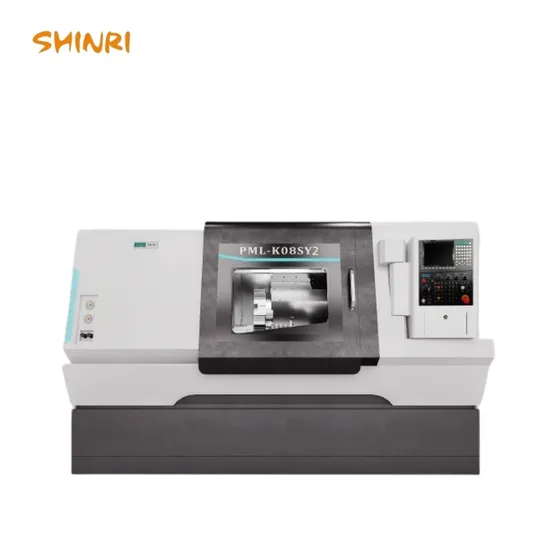

K08sy2 Double Spindle Double Living Tool 12-Station Turret Slant Bed CNC Lathe Machine Tool

Product Description

Product Description
1. Machine tool castings are made of one-piece castings. The design adopts advanced finite element analysis technology, with reasonable structure and excellent layout. And the castings undergo secondary aging treatment to ensure long-term stability of machine tool processing.
2. Equipped with a sub-spindle, two living tool turrets, which can improve processing accuracy and efficiency, and achieve a higher degree of automation.
3. Both spindles adopt precision electric spindles, which have high precision, high rigidity, high speed and durability.
4. The screw adopts precision imported ball screw, combined with pre-stretching process, which has small thermal deformation and high transmission accuracy.
5. The screw rod support adopts imported bearings, and the lock nut adopts high-precision lock nut. Further improve machine tool processing accuracy.
6. The machine tool is designed with two modes: side chip discharge and rear chip discharge. Optional.
Product Parameters

Item	Specification	Unit	K08SY2
Machining capacity	Max. swing over bed	mm	Φ210
	Max. turning diameter	mm	Φ210
	Max. turning length	mm	250
Travel	Max. travel X1/X2 axis	mm	170/150
	Max. travel Z axis	mm	390
	Max. travel A axis	mm	790
Spindle/Sub-spindle	Max. spindle/sub-spindle speed	r/min	4000/4300
	Spindle/sub spindle nose		A2-6
	Spindle hole diameter	mm	Φ66
Feed rate	Rapia travel speed(X/Y/Z)	m/min	20/20
Turret	Turret type		Living Tool Turret
	Tool stations	Tools	12
	OD shank size	mm	20×20
	Max. diameter of boring bar	mm	Φ25
Overall dimension	L×W×H	mm	3350×2300×2100
Machine weight	Net weight	Kg	8000

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.

---
