New Design Curved Stair Lift Used for Disabled Person/Inclined Wheelchair Lift Seat Lift

US$2,500.00-5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
X-500L
Driving Type
Hydraulic Type
Capacity
250kg
Persons
Customized
Speed
70mm/S
Control Mode
Customized
Position of Computer Room
Without Computer Room
Elevator Door
Customized
Door Knife
Customized
Deceleration Device
With Deceleration Device
Attendant
Without Attendant
Color
Customized
Lifting Height
1m-10m
Production Date
30 Days After Receiving Customers′ Deposite
Features
Customized
Transport Package
Export Wooden Box Packaging
Specification
Customized
Trademark
Aplus
Origin
China
HS Code
8428909090
Production Capacity
10000sets Per Month

Product Description

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.

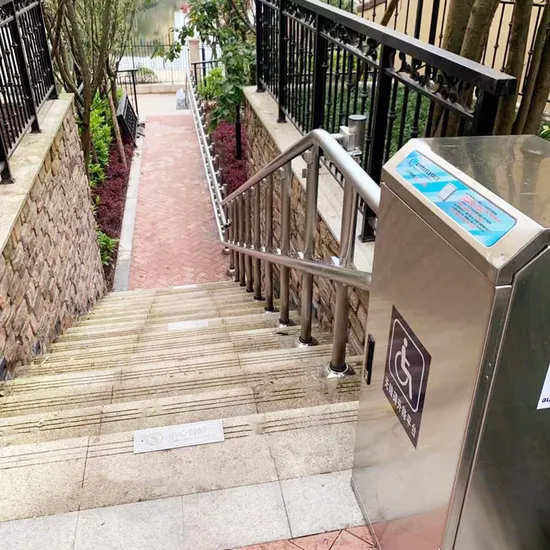

Inclined wheelchair lifts from APLUS can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.
Platform Technical Parameter table:
Platform load 250kg Platform weight ≈150 kg
Operating surface size 680mm*60mm (L*H) Platform manned size 1118mm*800mm
Side flap size 885mm*260mm(L*W) Side flap tiltable angle -30°~ +60°
Guardrail height 945mm button height 1088mm
Device thickness 450mm±3mm Platform Folding Thickness 323mm±1mm
Internal voltage Up to DC 25.2V safe voltage key response <0.2S

Platform material and craft table:
platform shell White spray + matt film platform pedal Aluminum Alloy Profile Sandblasting Oxidation
Operation panel Electroplated acrylic Action button Stainless steel
side panel seal Aluminum alloy side panel rod Stainless steel mirror + rubber sheet
Automatic guardrail stainless steel wire drawing floor Aluminum alloy profiles

Power technical parameter table:
Motor Power 1 kw speed ratio ≤80:1
running speed 0.01~0.16 m /s Power supply 220v 50hz
drive power 1 kw control voltage DC 24V,5V
drive voltage 220V 50HZ Emergency stop response <0.5s
Communication frequency 9600k hz
