Agricultural Machinery Russia Forests Wood Log Cutting Machine Firewood Splitter

Product Description

Product Description

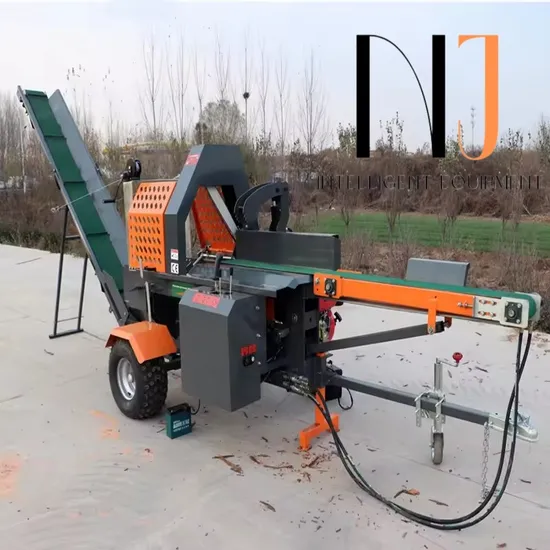

The wood splitter mainly adopts the hydraulic working principle and uses the strong thrust generated by the hydraulic cylinder to split tree stumps, large tree branches, large log sections and relatively hard wood. In this way, the raw materials can be processed to meet the feeding size requirements of the chipper or split into materials for other purposes.
Detailed Photos

Product Parameters

Performance	Max splitting power	20T
	Max splitting length	Standard 610mm (24 inch)
	Max cutting & splitting diameter	480mm (19 inch)
	Cycle time	8-12s
	Work efficiency	4-7CBM/H
	Wood fixing	Hydraulic
	Saw cutting	Joystick with solenoid valve
	Saw lubrication	Automatic by hydraulic system
	Splitting	Automatic
	Splitting wedge	4 way (height adjustable)
Machine assembly	Engine	18HP LIFAN gasoline (electric start)
	Pump	20GMP (2-stage)
	Splitting cylinder	3.15''×24''×2''
	Hydraulic oil tank	100L
	Feeding conveyor	2400*200mm
	Rear loading conveyor	3200*250mm
	Tyre	22×11-10
	Traction	50mm ball couple
Packing	Size	2300×1250×1750mm
	Weight	980KG
	Loading Q\ty	7/16 pcs (20GP/40HQ)

Widely used in industries such as papermaking, artificial board manufacturing, and wood pulp processing. It is an important preparation machinery for these industries. At the same time, it is also suitable for places that require a large amount of firewood splitting, such as large forest farms, wood processing factories, and biomass fuel production plants.

---
