S-100L 100L High Vacuum Lab Double Layer Stirrer Heating Glass Reactor

Product Description

S-100L 100L High Vacuum Lab Double Layer Stirrer Heating Glass Reactor
Applications:
Glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. We have single wall, double wall and triple wall glass reactors. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle allows you to add material to the vessel at a uniform and controlled speed. Condenser helps to recover some materials distilled during reaction. Circulating liquid can be filled into the jacket to heat or cool materials inside. Triple wall glass reactor with two jackets, the inner jacket is for circulating liquid, and the outer layer should be pumped to vacuum condition for thermal insulation.
Advantages:
High borosilicate glass has good physical and chemical properties.
Wide working temperature range: -80ºC to 200ºC.
It can work under normal pressure and negative pressure, its vacuum degree can reach to 0.098Mpa.
Digital display for stirring speed, variable frequency and constant speed stirring system, work smoothly.
PTFE stirring bar and vane.
Anti-corrosion discharge valve without dead space design.
PTFE sealing, wear-resistant and anti-corrosion, high vacuum.
Precautions:
Maximum working temperature is 200ºC, the minimum working temperature is -100ºC. And the maximum temperature difference between the internal and external of the reactor is 80ºC. When heating and cooling the reactor, it is recommended to monitor the temperature inside and outside the vessel continuously and heat up or cool down gradually to avoid accidents.PTFE Hose: using temperature range -100ºC~150ºC(Optional)Stirring Sealing(National Patent): excellent sealing, durable and corrosion resistant, long service lifeStainless Steel Thermal Insulation Hose: using temperature range -150ºC~300ºC, can be used for both high and low temperature circulating fluid pipelineCeramic Bearing: Abrasion resistant, corrosion resistant, long service lifeQuick Connectors for Circulating Hose: It is easy to moving and disassembling. PTFE Stirrer: Stirring shaft is PTFE rainforced stainless steel, strong and durable.Hose manifold has two important functions:Supporting the hose connected to the kettle body, thus reducing the pressure of the glass circulation joint, and the quick cycle joint is easy to assemble and disassemble.It is convenient to replace the kettle body and discharge the heat transfer oil from the jacket to other containers cleanly and effectively.Technical Specifications:

Model	S-10L	S-20L	S-30L	S-50L	S-80L	S-100L
Glass Vessel Capacity	10L	20L	30L	50L	80L	100L
Ports on the Lid	6
Power of Motor	120W	180W	180W	250W	370W	370W
Power Supply	220V 50Hz
Stirring Speed	650rpm
Speed regulation	Digital display frequency control
Sealing	PTFE sealing
Discharge Valve	PTFE valve or Glass valve
Temperature Display	Digital display
Sensor	PT100
Operating Pressure	Ordinary pressure or negative pressure
Vacuum Gauge	Pointer type
Dimensions (mm)	580x580x1800	580x580x2000	580x580x2000	600x600x2300	700x700x2500	800x980x2660

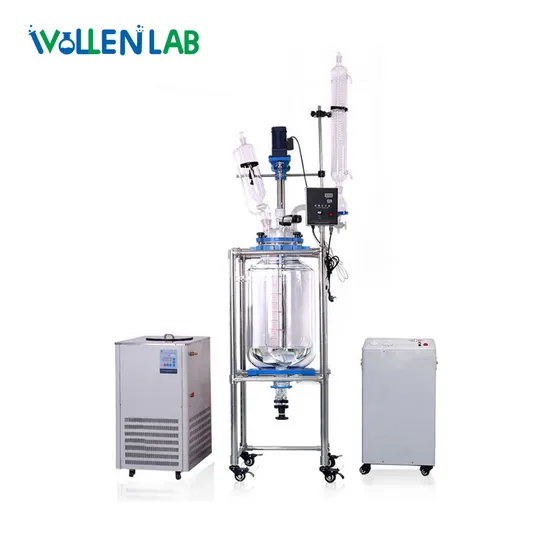

Glass Reactor with Chiller and Vacuum PumpGlass Reactor with ChillerGlass Reactor with High Temperature and Low Temperture Circulating Device
Customization is acceptable.
