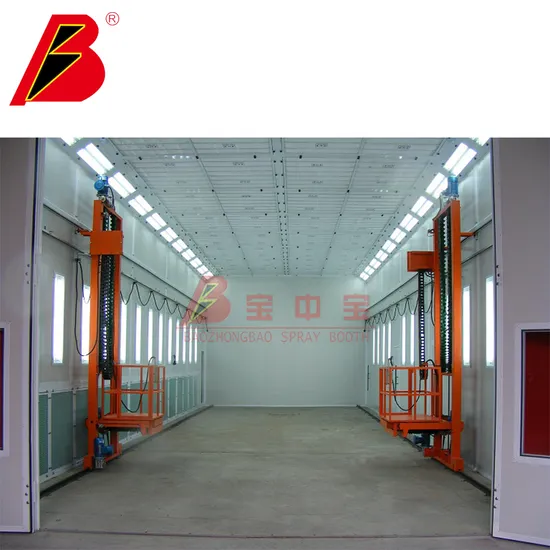

The Follow project is for Aerospace manufacturer Painting Line Project.Including Sanding Room,Paint Booth,Baking Room.Water curtain paint room.ect.
Attached follow standard dimention for reference,accept different customer design.
| specifications of spray booth of 15meters, only for reference. |
| model of spray booth: | BZB-FB model | manufacturer | Jingzhongjing |
| technical parameters | (L× W× H)outside size | 15156× 6956× 5800 | structure parameter | thickness of wall panel mm | 75 |
| (L× W× H)inside size | 15000× 5000× 5000 | thickness of steel sheet mm | 0.5 |
| Access door width(mm) | 4000 | stuffing | EPS Panel |
| Access door hight(mm) | 4500 | grid | 30*4flat iron |
| air speed when empty(m/s) | ≥ 0.25 | shelf of the booth | square steel pipe+angle iron |
| noise dB | ≤ 85 | mesh | square steel pipe |
| total power kw | 52 | cabinet | square steel pipe+galvanized steel plate |
| max work temprature | 80 centi degree | illuminance parameter | lamps(pcs) | ceiling lamps72 |
| spec. of burner | burner | 2 sets of RG5S Riello Burner | bottom lamps 40 |
| max heat Calories/h | 260000*2 | power/pc W | 36 |
| fuel consumption L/h | (13-26)*2 | lamps | 220V/50HZ |
| heat-exchanger | stainless steel | illuminance Lux | ≥ 800 |
| spec. of inlet fan | model of inlet fan | YDW-5.6S | outlet air parameters | outlet pipe(mm) | 900× 900 |
| estimated air Volume m3/h | 17530 | chimney | galvanized steel plate |
| power/set(KW) | 7.5 | hight of chimney | standard 12m plus two elbows |
| Quatity | 4 | electric appliance | control box model | PLC control board |
| spec. of outlet fan | model of outlet fan | 4-82-6.3E | components of control box | main parts are importd. |
| estimated air Volume(m 3 /h) | 34000 | others | color | grey/sky blue/orange(optional) |
| power/set(KW) | 15 | work plate lifter | optional |
| quatity | 2 | | | |
| remarks | |
| made by: Guangdong Jingzhongjing Industrial Painting Equipment Co., LTD. | | Aprill. 30th, 2011 |
