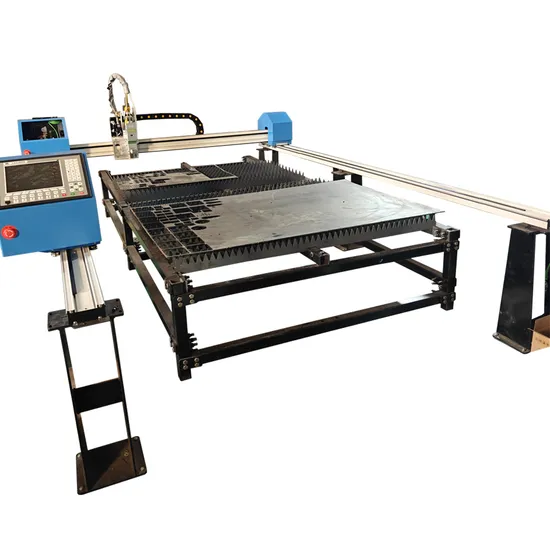

Portable Gantry 1500*3000mm Laser Cutting Machine

Product Description

System Overview
L4310HX numerical control system is a more powerful, easier to operate and more cost-effective product developed by absorbing the advantages of many numerical control systems at home and abroad.The product adopts three axis digital position control mode and is suitable for laser plane cutting and round pipe cutting machine tools. The control system is light and portable, simple to operate, easy to use, all operations with menus or graphical prompts, silly operation.All key switch humanized design, comfortable and convenient. L4310HX controller adopts high-performance ARM chip and super-large scale PROGRAMMABLE device FPGA to run multi-task real-time operating system. It combines software interpolation with hardware interpolation to make the high-speed operation more stable, reliable and quick response. The style is as follows
System Features
Chinese, English, Spanish, Portuguese, French, Russian, Danish, Korean, Japanese and other languages menu, language one-click switch.In addition to Chinese and English, customers are required to provide language translation documents, can support most languages (except Thai). 53 common graphics libraries (including grid graphics), optional set slice size and hole size. Support EIA codes (G codes) and G codes such as TXT, CNC, NC, MPG, and B3. Support ESSI code common commands. Automatic edge finding function. Support laser three stage perforation process, support focus adjustment. Integrated bus heightener control, through the system to modify the parameters of the heightener, monitoring the status of the heightener, convenient operation, simplified wiring. Processing rate, running time, perforation times and other information statistics Compact keyboard design, but the function is not simple, so that manual input files more comprehensive. Figure proportion, rotation, mirror adjustment. Figures can be matrix arrangement, staggered arrangement, stacked arrangement. The original size and slit size of the workpiece are displayed at the same time, which is intuitive and convenient. Graphic plate calibration, any plate edge can be used as calibration edge. Can customize the coordinate system, support two - dimensional coordinate system of four. You can customize all input and output port types (normally open or normally closed) and number. Self-diagnose all I/O status and key status of the system for easy check and troubleshooting. Front U disk interface, convenient program transmission. System upgrade using U disk upgrade method, convenient and practical, provide lifelong upgrade service. Supports system backup and system restoration. System restoration can be performed to restore only the operating system or to the factory default state. All functions and processes of the whole system can be upgraded online to avoid aftersale worries. Processing files can be imported or exported individually or completely. Parameter backup and parameter restoration. All kinds of processing parameters are complete, to meet the needs of different technology. Real-time acceleration and deceleration in motion. Manually select the starting line or the punch point. Dynamic/static processing graphics display, graphics zoom in/out, dynamic tracking of the cutting point in the zoom state. FPGA high-speed, high-precision interpolation control, high-speed operation, smooth operation, low noise. Arbitrary setting of starting speed, speed up and down time. With power, breakpoint protection memory function. "Offset cutting" function can avoid the sheet waste caused by the wrong calculation of the discharge. You can set different management rights and passwords to protect the rights and interests of device manufacturers. Remote control that supports CAN interface. Supports the laser point-to-point function.

No.	machine model:GC-1530-3000W
1	max working area		1500mmx3000mm
2	Packing dimension		2000mmx3000mmx1700mm
3	Laser source		3000W 2000W 1500W MAX LASER SOURCE
4	laser head		RAYTOOLS with auto focus
5	software		Professional FSCUT3000 with Cypcut software
6	motor and driver		invance servo motor driver
7	Reducer		SHIMPO reducer
8	Water chiller		Hanli Water Chiller
9	Rack and pinion		Taiwan brand T-WIN rack and pinion
10	Guild rails		HIWIN GUILDER RAIL
11	Exhaust fan		Blower Exhaust fan
14	voltage stabilizer		YES
15	Accessories incl15uded		1 SET MAX FIBER LASER SOURCE 3000W
			1 SET RAYTOOLS LASER HEAD(AUTOMATIC FOCUS)
			1 SET WATER CHILLER
			Fangling SOFTWARE
			INDUSTRIAL COMPUTER
			FAN
			LASER PROTECTION GLASSES

Packaging & Shipping
Company Profile
FAQ
1. who are we?We are based in Shandong, China, start from 2012,sell to Domestic Market(30.00%),South America(20.00%),Africa(15.00%),Mid East(9.00%),Central America(5.00%),Southeast Asia(5.00%),Eastern Asia(3.00%),Oceania(3.00%),South Asia(2.00%),North America(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Western Europe(1.00%),Northern Europe(1.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?CNC Plasma Cutting Machine, CNC Laser Cutting Machine, Laser Welding Machine, Plasma Power Supply, Plasma Laser Accessories4. why should you buy from us not from other suppliers?We prefer to explain for price for a while Don't want to apologize for the quality for whole life we believe that only the perfect quality is our proud because we are GaoChuang CNC, numerical control cutting machine of professional manufacturers.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU;Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,GBP,CNY;Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian

---
