Hot Sell Metal Sheet Processing Machine 4/3 Rollers Steel Plate Rolling Machine Low Carbon Steel Plate Rolling Machine

Product Description

Hot Sell Metal Sheet Processing Machine Low Carbon Steel Plate Rolling Machine Product Description

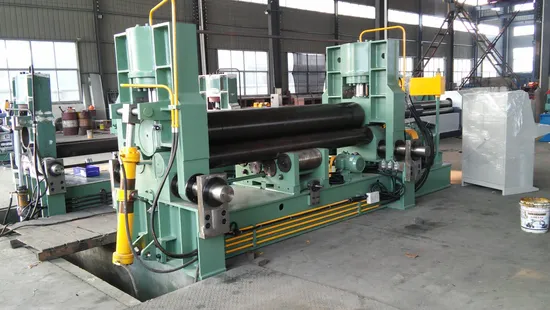

W11s upper roller Universal Plate Rolling Machine is a new type of rolling machine produced by the introduction of advanced technology at home and abroad, combined with the actual situation in China. The machine belongs to the hydraulic three-roll rolling machine, which carries out pre-bending through the horizontal movement of the upper roll. And then the low carbon steel, low alloy steel is rolled into a cylinder shape at room temperature.
Product Parameters

No.	Model:W11S-12×2500	Paremeter	Unit
1.	type	Upper roll numerical control (economy type)
2.	Add pressure	75	T
3.	Maximum plate width	2500	mm
4.	Working length of roller	2550	mm
5.	Maximum plate thickness curved end	T10×B2500×¢min 550σs≤245Mpa)	mm
6.	Maximum plate thickness central	T12×B2500×¢min550(σs≤245Mpa)	mm
7.	Full load remaining straight edge length	≤2 times plate thickness
8.	Diameter of upper roll	¢260	mm
9.	Lower roll diameter	¢150	mm
10.	Two roll center distance	245	mm
11.	Coil speed	About 4.5	m/min
12.	Pressure rate of upper roller	About 120	mm/min
13.	Diameter of supporting roller	¢180	mm
14.	Number of supporting rollers	3	Piece
15.	Number of idlers	1	Set
16.	Main motor power	7.5	KW
17.	Hydraulic motor power	4	KW
18.	Mobile motor power	1.5	KW

Feature
Tipping frame using hydraulic tipping; Vertical displacement of upper roller adopts hydraulic transmission, horizontal movement adopts mechanical transmission. The equipment has high reliability, stable operation, flexible control, no jamming, oil leakage and abnormal noise.
High precision. The machine adopts the drum shaped roller and the smaller diameter of the lower roller, the lower roller can be adjusted up and down the lower part of the support roller.
The control circuit adopts PLC programmable controller system, less relay, precise action, long service life.
The NC system has the functions of real-time monitoring, in-place control and short electrical memory in the rolling process.
Application
Widely used in petroleum, chemical industry, boiler, shipbuilding, hydropower, metal structure and machinery manufacturing industries


Machine detailed
The machine is mainly composed of upper roller device, lower roller and horizontal moving device, idler roller device, main transmission system, tipping device, frame, balancing device, chassis and other parts.
1. Upper roller device
The upper roller device is composed of upper roller, main oil cylinder, upper roller bearing seat and double-row self-aligning bearing.
2. Lower roller and horizontal moving device
The lower roll device is composed of the lower roll, the lower roll bearing seat, the lower roll sliding bearing, the lower roll input gear and so on.
3. Roller device
The roller device is composed of roller combination, wedge mechanism and screw mechanism.
The adjusting screw drives the two sets of wedges to move closer or apart, so that the combination of idlers can be raised or lowered.
The idler roller is made of 45 steel, quenched and tempered, and its hardness is lower than that of the lower roller.
4. Main drive system
The main transmission system is composed of main motor, reducer, output gear and so on.
5. Tip over device
The overturning device is composed of pin shaft, ram, overturning hydraulic cylinder, support and so on.
6. Balance device
The balance device consists of two pull rods and a balance beam.

Manufacturing Process
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition. Company Profile

Why Choose Raintech SANS? CERTIFICATE International exhibitions Customer visits FAQ
♥1.How to operate the machine ? We will deliver English manual and video with the machine to you. lf you still need our help, please contact us. ♥2.If some problems happen to this machine during warranty period, what should I do? We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions. ♥3.Does the machine can be customized according to my requirements ? Yes, we have a strong technical team and have rich experience. ♥4. What about the package and shipment ? The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.

---
