6-Head Servo Filling Machine/Paste Syrup Oral Liquid Filling/Honey Piston Filling Equipment/Liquid Filling Production Line/Food Grade Piston Filling Machine

Product Description

Product Description

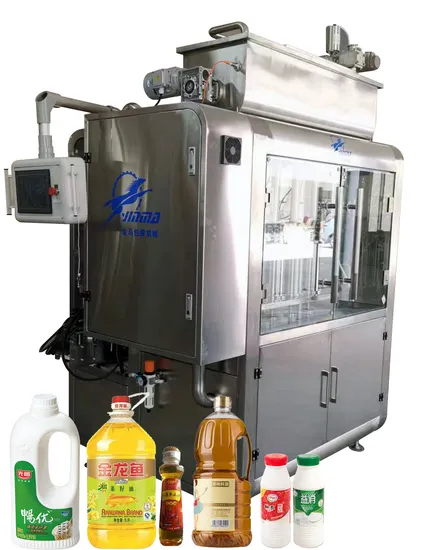

The MG230-6C fully automatic filling machine is a piston metering filling machine. The whole machine has an in-line structure. It uses a servo mechanism to drive multiple pistons to reciprocate. It cooperates with the reversal of the three-way rotary valve to complete the process of sucking materials from the material box to filling. The loading head discharges materials to achieve high-precision filling. The whole machine is designed and uses sanitary valves according to the requirements of the food industry. The material box is equipped with a spray ball. The piston can automatically de-cylinder. It has a reflux pump for cycle cleaning. The parts in contact with the material have no dead corners and are easy to clean. It adopts PLC control and touch screen human-machine interface, which is easy to operate. It is suitable for filling concentrated juice, jam (strawberry, grapefruit, yellow peach, pineapple, etc.), sauce, fructose, fruit pulp and other fluid materials. It is an ideal choice for the food industry. The preferred filling equipment for glass bottles, plastic bottles, and tinplate cans.
The production line can be equipped with the following products according to customer requirements:
1. Supply/storage/bottle unscrambler
2. Bottle collection workbench
3. Pasting/sleeving labeling machine
4. Inkjet printer
5. Packing machine
Equipment composition:
The piston automatic filling machine mainly consists of the following parts:
1. Filling frame: bracket and operation panel, etc., used to support and operate the filling machine.
2. Filling head: including piston, cylinder, valve, etc., used to realize filling and quantitative control of materials.
3. Pneumatic system: including air source, pneumatic valve, cylinder and other parts, used to realize the coordinated work of all parts of the filling machine.
4. Electrical control system: including mechanical system, human-machine interface system, electrical components and other parts, used to realize the automation and intelligence of the filling machine.
Features:
1. It adopts PLC programming control and a double-screw transmission mechanism driven by a servo motor to drive the piston movement through the lifting beam, ensuring the high precision of the piston movement stroke and achieving precise filling.2. The arc bottom material box is equipped with two spray balls, liquid level detection and sanitary pneumatic feed stop valve. All pipeline connections are quick-installation clamps, and there are no sanitary dead corners. (The optional spiral belt mixing can be set to run in forward and reverse directions at a fixed time, which is suitable for uniform mixing of granular materials and reducing filling errors)3. During cycle cleaning, the piston reciprocates in the cylinder liner, and the cleaning liquid in the material box is discharged through the filling head, which can preliminarily clean the entire filling channel. It can also be operated manually to automatically separate the piston from the cylinder liner, flush the piston manually, and then return the piston to its original position to wait for filling.4. The filling head lifting mechanism driven by the servo electric cylinder. The speed and position of the filling head rising and falling can be set independently. Various filling methods can be realized according to different bottle types and material characteristics, such as inserting into the bottom of the bottle. The filling edge rises (reduces foam and prevents overflow), non-submersible filling of wide-mouth bottles (increases output), etc. The cylinder bottle clamping structure blocks the bottle mouth to ensure that the filling head is aligned with the bottle mouth. After filling is completed, the bottle clamping mechanism retracts, and the liquid trough returns to the bottom of the filling head to prevent materials from dripping out of the bottle mouth. The hose connecting the filling head and the three-way valve is an imported food-grade hose with a temperature resistance of -40ºC-+140ºC.5. The stainless steel frame of the whole machine and the parts in contact with the material are all made of SUS304 stainless steel. The material box and pipe valve can be made of 316L material. The bottle filling area is separated from other parts by a closed tempered glass door and stainless steel plate. In this space An optional 100-level laminar flow hood can be installed above to maintain positive pressure in the filling space and ensure the cleanliness of the filling space.6. The water tank under the filling head is equipped with a circulation pump, which can realize CIP cycle cleaning.7. It adopts Delta brand programmable controller, touch screen, Delta servo drive system, frequency converter, French Schneider low-voltage electrical appliances, SICK photoelectric sensors, German Igus brand sliding bearings, and Taiwan Airtac pneumatic components to make the whole machine more reliable. It has more advantages in stability, reliability and service life.
Aplication:
Various types of bottled and barreled food filling

Detailed Photos

Product Parameters

Production capacity	2000 bottles/hour (taking 1000g jam bottles as an example)
Adapt to bottle type	round bottle - diameter Φ50-140 mm, bottle height 80-320 mm
Filling volume	500-3000ml (single)
Measurement accuracy	±1%
Air source pressure	0.6~0.8 MPa
Power supply	~220V, 50Hz
Power	3.5 kilowatts
Dimensions	2400×1500×2550 mm (length×width×height)
Weight	About 1400 kg

Company Profile
ChangeZhou Jinma is an equipment manufacturer: focusing on the development and sales of automated production and packaging equipment for innovative ingredients (Hantian crystal balls, sandwich popping beads, etc.) in the beverage industry.
Jinma provides overall solutions: providing customers with customized overall solutions including workshop layout design, formula, process, equipment installation and commissioning and training.
Jinma is a high-tech enterprise: established in 2014, and was rated as a high-tech enterprise in 2019 and 2022.

After Sales Service
Technical Support
1. Customised machine;
2.Customized layout drawings;
3.Commissioning and installation before delivery;
4.Overseas engineers to install and debug ,Training ;
5.Formula debugging;
6.Upgrading and transformation, make your equipment back to a better state and solve the problem of insufficient output;
7.24-hour online technical support and service.

FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
Your expected capacity for machine.So that we can recommend the most corresponding machine.
Q:When is your delivery time ?
A:Single machine:30-45 working days.Production line:60-75 working days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
Packaging and shipping:
Wooden box---solid wood or multi-layer wood,What materials to use are determined based on the actual situation.

---
