Naiwo Flat Face Quick Connector Hydraulic Quick Coupler 1/2" Non-Spill Coupling ISO16028

Product Description

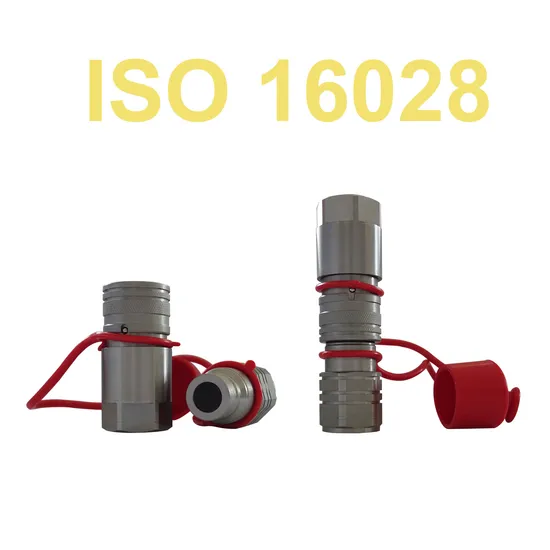

ISO 16028 - NWP4 Series Quick Coupling (steel)
Product Feature Meet the standard ISO16028 Push and pull connection With safe lock to avoid accidental disconnection Standard material: Carbon steel Standard seal: Nitrile rubber, fluoride rubber

Seal elastomer data
Seal	Maximum working temperature range
Nitrile rubber	-20ºC to +100ºC
Fluoride rubber	-25ºC to +150ºC

Product Parameter

Size (in)	ISO (mm)	Max Working Pressure (bar)	Rated Flow (l/m)	Min Blast Pressure (bar)			Fluid Loss (ml-cc)
		Connection		Connection	Male	Female
1/4	6.3	400	12	1900	1900	1900	0.008
3/8	10	350	23	1600	1560	1780	0.01
1/2	12.5	350	45	1770	1700	1590	0.012
3/4	20	350	74	1580	1660	1420	0.015
1	25	350	100	1840	1600	1470	0.02
1-1/4	31.5	350	189	1530	1470	1400	0.03
1-1/2	40	230	288	800	700	320	0.05
2	50	150	379	600	600	280	0.1

Application Range
Hydraulic & fluid delivery
Building equipment
Agriculture machine
Multi purpose vehicle
Road vehicle
Fixed hydraulic equipment & fluid transport in factory
Interchangeability
FASTER 2FFN/2FFI series
PARKER FEM series
HANSEN FF series
AEROQUIP FD89 series
Photo Details
Hebei Naiwo Fluid Technology Co. Ltd is located in matou economic development zone of hebei province, China. We are specialized in production of NAIWO brand quick coupling(ISO16028, ISO7241-A, ISO7241-B) with stainless steel, carbon steel and brass material. The quick coupling can be widely used for metallurgy, oil, chemical, food, shipbuilding, agriculture machine, construction machine, special car/truck, paper making, drilling platform and other fields. We take the "leading technology, excellent quality, perfect service" as the company culture and management concept, focus on strict production procedures and related testing equipment, which help our factory win the clients′ praise and trust all over the world.

---
