Polyester Spiral Mesh Belt Filter Press Sludge Filtration Sewage Dryer Filtration Gravity

Product Description

Product Description

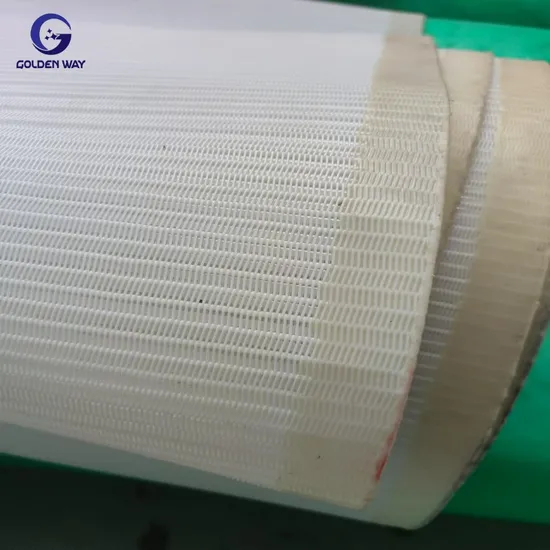

Polyester Spiral Mesh Spiral dryer fabrics are made of polyester monofilament wound into the spiral loop, and the spiral loops are connected together with weft seams to form a spiral mesh. It is widely used in the dryer section of paper machine, the production of composite fabrics, the drying and conveying of food and medicine.
Polyester spiral press belts can operate as dryer fabrics, filter mesh screens or conveyor belts. Spiral dryer fabric is available in abroad air permeability range. Spiral fabrics are easy to fit and install, simple to clean and remain stable even after long running times of operation.
According to the weaving way, it can be divided into two kinds of products: Polyester Spiral Dryer Mesh and Polyester Spiral Press Filter Mesh Detail Images
Product Parameters

Type	Wire diameter(mm)		Strength(N/cm)	Air Permeability(m3/m2h)
	Warp Wire	Weft wire
Large pro loop	0.90	1.10	≥2300	21000±500
Big loop	0.90	1.10	≥2000	18000±500
Middle loop	0.70	0.90	≥2000	16000±500
Little loop	0.50	0.70	≥1800	15000±500

Porduct process
Application It is suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity.it also could be used as conveyor belt and the laminating machine matching belt.
Packaging & Shipping
Company Profile
Hebei Golden Way Import & Export Co. , Ltd. was established in 2014. After ten years of development, it has become a professional export company with its own factory.
The company mainly engaged in polyester mesh and stainless steel conveyor belt. The productions are widely used in paper, power plant desulphurization, tailings dry drainage, sewage treatment, fruit juice as well as food, pharmaceutical and other industries.
With reliable quality and professional export services, we have established a long-term friendly relationship with the customers.The productions were exported to the United States, Germany, Brazil, India, Singapore, Pakistan and Russia and more than 10 countries and regions. FAQ 1. Can I have a sample order ?
A: Yes, we are welcome sample order to test and check quality. Mixed samples are acceptable.
2. What about the lead time ?
A: Sample needs about 3 days, mass production time needs about one week for order quantity more than.
3. What is your MOQ?
A: 100m2, 1pc for sample checking is available.
4. How do you ship the goods and how long does it take to arrive ?
A: Express and ocean ship, the express usually are DHL,UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline also optional.
5. Is it OK to print my logo ?
A: Yes. Pleas inform us formally before our production and confirm the desige firstly
based on our sample.

---
