Basic Info.
Machine Color
According to Client′s Requirements
Working Width
1000mm and 1300mm
Spare Parts
Wire and Cylinder
Bearing
Koyo/or According to The Customer′s Requirements
Operational Zone
Human-Machine Interface
Fiber Length
Fine Quality
The Connection Method
Conveyor Belt
Electrical Components
Zhengtai / According to The Customer′s Requiremen
Machine Qty
According to Customer′s Produce Requiremens
Transport Package
Standard Packing for Export
Specification
1+6 rollers
Production Capacity
120-300kg/H
Product Description
Textile Waste Cloth Opening Machine/ Cotton Rags Cloth Cleaning Machine Cotton Air Recycling Machine Textile Machine Regenerated Denim Waste Recycling Machine
Textile waste recycling machinery can be quickly opening various waste rags,waste cotton yarn,old clothes,cotton,chemical fiber,linen,non-woven fabrics and other scraps.The combination of the cutting machine and the recycling production line makes the operation more convenient.

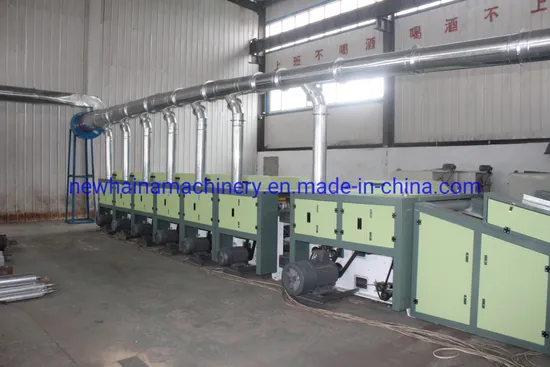

Machine list,
| NO. | Machine name | Qty |
| 1 | Cutting machine-GM800C | 1 |
| 2 | Opening machine-GM600 | 1 |
| 3 | Cleaning machine-GM250 | 6 |
About cutting machine,
| NO | ITEM | DESCRIPTION |
| 1 | Model | GM800C |
| 2 | Dimension of M/C | 3200L1000W1100H(mm) |
| 3 | Weight | 800kg |
| 4 | Total power | 7kw |
| 5 | Main motor | 3 phase AC power 50Hz |
| 6 | Protection | Main motor overload protection Open phase protection |
| 7 | Working width | 350mm/ Unadjustable |
| 8 | Number of Rotating blade | 4 |
| 9 | Number of Fixed blade | 1 |
| 10 | Bearing | High quality bearings |
| 11 | The connection method | Conveyor belt |
| 12 | Electrical components | Zhengtai |
| 13 | Capacity | 800KG/H |
| 14 | Note | CNC cutting equipment and machining center equipment will be used in the manufacture of the machine. All rotating shaft through dynamic balance test. |
About opening machine and cleaning machine,
| NO | ITEM | DESCRIPTION |
| 1 | Model | Recycling line
GM600+6*GM250 |
| 2 | Installation dimensions | 15110mm*2010mm*3050 |
| 3 | Weight | 7550KG |
| 4 | Total power | 75KW |
| 5 | Working width | R1040mm/ Unadjustable |
| 6 | Main roller | Opener
φ600mm/Teeth wire |
Cleaning machie
φ250mm/Teeth wire |
| 7 | Capacity | 150-220KG/H for spinning product |
| Depending on the raw material and product requirements(length of fiber), also the correct operate |
| 8 | Protection | RMain motor overload protection Open phase protection |
| RPhotoelectric sensor induction protection |
| 9 | Dust removal system | By fans to out of workshop |
| 10 | Way of control | Constant power & All Inverter control &PLC |
| 11 | Bearing | KOYO/Or according to the customer's requirements |
| 12 | Electrical components | The key contactors by SIEMENS or according to the customer's requirements |
| 13 | Inverter | MAIFU 16months guarantee and in guarantee send by DHL free |
| | PLC | MITSUBISHI |
| 14 | Print Color | According to the customer's requirements |
Final sample,for example,
