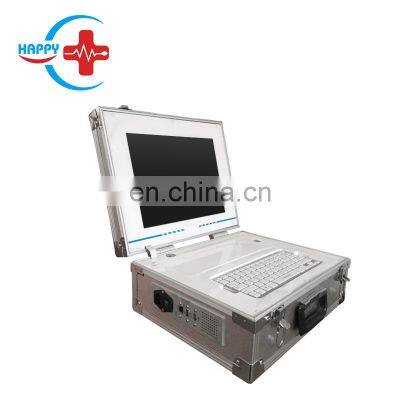

HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell
Trade assurance
Product Description
Features for HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell:
1.Introduction
The bone density analyzer is a medical test instrument that uses ultrasonic test method to test human bone density, that is, human bone mineral density. The test result is an important index for testing bone strength. It is non-radiative and the diagnosis of fractures is more sensitive.
2.Test principle
The bone densitometer is a medical testing instrument for testing human bone minerals and obtaining various relevant data. The results of the bone densitometer test are mainly based on T values,also including Z values, bone density, bone mass, etc.,it using sound wave velocity ( SOS) and amplitude attenuation (BUA) can reflect the bone mineral content and bone structure and bone strength, and it have a good correlation with DEXA. The principle of ultrasonic test bone density is to calculate the density of bone by obtaining the velocity of the ultrasonic at the bone being tested.
3.Product Function
Children:
Prevention of osteoporosis
Monitoring to achieve optimal bone mass
Bone mass is closely linked to fractures in childhood
Effectively avoid calcium deficiency in children
Adult:
Predict fracture risk
Evaluate whether has osteoporosis and its severity
Decide whether you need treatment and the treatment effect
Understand the annual bone loss rate
4.Product Features
♦ No radiation, no damage
Advanced ultrasonic test principle can completely avoid the carcinogenic and teratogenic side effects of X-ray bone densitometer
♦ Easy to operate, fast test speed
Test the radius, finish a single test within 40S, no cross-contamination, convenient for doctors and patients
♦ One device is equipped with dual software
Child and adolescent test software and adult test software, the test age range of child and adolescent software is 0-20 years old, the test age range of adult software is 21-99 years old
♦Complete calculation parameters
T value, Z value, SOS, ratio of test value to normal value (V/P), age at which osteoporosis is expected (EOA), relative fracture risk (RRF)
♦ Accuracy of test
The probe adopt the double-emission and double-receiving longitudinal emission technique and simultaneously obtains two equal-distance sound velocity values to indicate the parallel state of the ultrasonic device and the measured bone.
The two sound velocity values are respectively displayed on the test interface with different color ribbons, which are directly visible and easy to operate.The visual positioning system to ensure test accuracy and repeatability
♦ The most secure database for the population
Database advantage, distinguishing between adults and children.The database of the bone density analyzer used is the Asian population data which from WHO standard database,and the data collected by authoritative medical institutions from 12,000 Chinese healthy population aged 0-18 years and 36,000 persons aged 19-99.
♦ Powerful functions
Predict the bone age of 0-20 years old, and predict child height(boys need to predict after 10 years old the girls need after menarche), the test of adult can predict relative fracture risk (RRF) and pre-fracture age EOA.
Host volume:length, width, height, 425mm * 365mm * 180mm
The host weight:≤ 11.5kg |
5.Technical Parameters:
Advanced portable digital integration technology, small size and light weight which easy to carry
Test value:ultrasonic test bone sound speed (SOS), non-invasive, no radiation
Probe:working frequency of main frequency sound :0.5MHZ
Accuracy & precision of test human body test accuracy RMS CV = 0.35 ± 0.05, probe precision ≤ 0.25%
Test Time:Single test time is 40 seconds ± 2 seconds
The man-machine interface mouse and keyboard
Display device:LCD flat panel monitor (LED)
Safety standards:GB9706.1, GB9706.9, GB9706.15
Power supply:AC 220 ± 22V 50Hz ± 1Hz
Input power:180VA
Humidity:30% to 85% non-condensing, operating environment: temperature:+5 to +40℃
Storage and transportation conditions:stored in the temperature -25 ~ +50℃, humidity is not more than 90%, no corrosive gas and well-ventilated indoor
Safety classification:Class I BF type
Printing equipment:external printer
Waterproof splash protection type:the type of probe anti-injection is: IP * 7
Disinfection or sterilization method:Probe can be routinely disinfected within 5mm of the probe surface
Running category:continuous operation
Pictures for HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell:
Packaging & Shipping
Company Information
Clients and projects
Our Services
FAQ
1. How to place order of HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell ?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell product, What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production,
And also the delivery time depands on quantity. For HC-B098A Cheap Portable Bone Densitometer portable bone density equipment machine Bone density scanner for sell , the delivery time is 10 working days .
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
>>
