Automatic Transformer Oil Dielectric Strength Tester Insulation Oil Breakdown Voltage BDV Tester

Product Description

Product Description

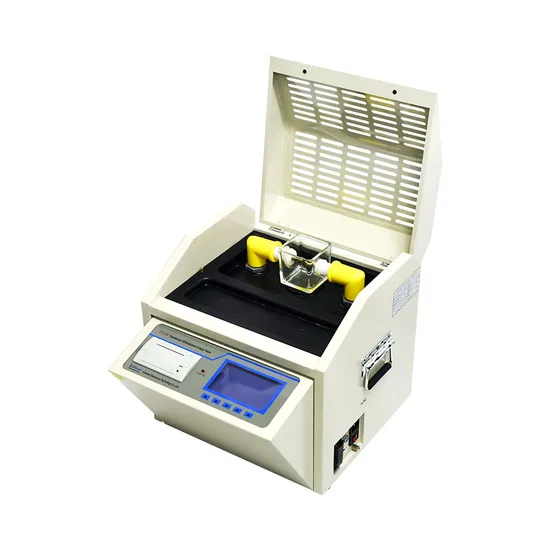

Automatic Oil Dielectric Breakdown Voltage Tester was designed on basis of IEC156 Oil-insulating testing, the process and result displayed by LCD, built-in EEPROM , can save 100 groups test results, all work can finished by mouse, test results printed by micro printer. This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.

Product Features
1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironment temperature and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensure the safety ofoperators.
7.With a temperature measurement display function and system clock display.
8.Standard RS232 interface.
Product Parameters

Input voltage	AC 220V
Output voltage	AC 0~80KV/100kv
Voltage boosting speed	2KV/S ±10%
Accuracy degree	3
Number of times of continuous test	1~9
Stirring time	0~99 seconds
Standing time	0-9 minutes 59 seconds
Can store 100 groups data.
Voltage limit setting	20KV-70KV
Voltage withstands time	1-10 minutes
Temperature	5-40ºC
Dimension	420mm ×380mm ×410mm
Weight	28kg

Accessory List

No.	Device name	Number
1	The equipment	1
2	The oil cup	1
3	The power cord	1
4	Standard gauge	1
5	Insurance tube	2(3A)
6	Impeller	2
7	Tweezers	1
8	Ground wire	1
9	Printing paper	1

Our Advantages
Why Choose us?
1) Owning core technology and advanced equipment with our own Technology Dept.;
2) On-line operation guidance and professional technical support ability.
3) Good quality can be ensured by our Professional QC team with competitive price.
State Grid Corporation of China is one of our customer!
4) Certifications are available.
5) OEM Service Offered.
6) Design Service Offered.
7) Small trial order can be accepted to see our quality and service.
8) Standardization, effectiveness and timeliness of the pre-sale, in-sale and after sales service.
Company Information
Kvtester Electronics Technology Co.,Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are CT PT Analyzer, Protection relay Tester, Transforer test equipment, Circuit Breaker Analyzer, Insulation Oil Tester, Cable Fault Locator, Series Resonant/Voltage-withstand Test Equipment, Secondary/Switch Test Equipment, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
Field Test & Service
Transaction details
FAQ
1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232? A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing
7. Q: Is it all right to make customer's own brand name?
A.Yes, we can provide OEM service.
8.What should I do if I do not know how to use?
A. manual user will be sent together, you can also contact us with more technical support and online guidance.
9. How can I choose the suitable one?
A. Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request?
10. Do you have Technical Backup to all customers from different customers?
A. To be surely, our technical support is always available and quick response.
We are manufacture of so much on site testing experience and understand how to deal with your problems. Moreover, our engineer can go to your country to support if need.

---
