China Manufacture 50m³ /H Concrete Admixture Mixing Plant Concrete Batching Mixing Plant

Product Description

Concrete Mix Station Concrete Mixing Plant for Construction
Product Description
Product Description
Concrete plant is semi-automatic concrete mixing equipment consisting of feeding, batching, mixing, electrical control and steel structure components. It is a compulsory, high-efficiency equipment that can produce dry concrete and other concretes. It has high production efficiency. It is widely used in large and medium-sized building construction, road and bridge engineering and precast plants for the production of concrete products. It is ideal equipment for producing commercial concrete. The main machine of the mixing system adopts the JS series double-shaft forced mixer, which has good mixing concrete homogeneity, short mixing time, long service life of wearing parts, also convenient for operation and maintenance. It adopts a new design concept of electronic weighing and microcomputer control. Digital display and other control technology, electronic weighing leveling buffer device and automatic compensation function, high measurement accuracy. The sand and gravel feeding system uses flat belts or herringbone belts, and is equipped with maintenance walkways. It is an ideal choice for the majority of producing high-quality concrete for construction projects.
Product Parameters
Product Parameters

Item		HZS25	HZS35	HZS50	HZS75	HZS100/120K	HZS150/180K
Theoretical productivity (M3/H)		25	35	50	75	100	150
Mixer		JS500	JS750	JS1000	JS1500	JS2000	JS2000
Mixer power (KW)		18.5	30	2*18.5	2*30	2*37	2*55
Max. aggregate size (MM)		60/40	60/40	80/60	80/60	80/60	80/60
Feeding capacity (L)		750	1150	1500	2250	3000	4500
Discharge capacity (L)		500	750	1000	1500	2000	3000
Aggregate bin capacity (M3)		4*4	4*4	4*6	4*8	4*12/4*15	4*18/4*20
Aggregate batching capacity (M3)		800	1200	1600	2400	3200	4800
Belt conveying capacity (T/H)		300	300	300	600	600	800
Screw conveying capacity (T/H)		40	40	40	40-70	40-70	70
Discharge height (M)		4.0	4.0	4.0	4.0	4.2	4.2
Total power (KW)		62	75	110	136	188	188
Weighing range	Stone	(200~800) ±2%	(250~1200) ±2%	(300~1600) ±2%	(400~2000) ±2%	(500~2400) ±2%	(500~3600) ±2%
	Sand	(200~800) ±2%	(250~1200) ±2%	(300~1600) ±2%	(400~2000) ±2%	(500~2400) ±2%	(500~3600) ±2%
	Cement	(70~350) ±1%	(100~500) ±1%	(100~500) ±1%	(200~800) ±1%	(250~1200) ±1%	(350~1800) ±1%
	Fly ash			(30~150) ±1%	(50~200) ±1%	(80~400) ±1%	(150~600) ±1%
	Water	(50~200) ±1%	(50~200) ±1%	(50~250) ±1%	(100~400)±1%	(100~550) ±1%	(150~800) ±1%
	Additive	(10~30) ±1%	(10~30) ±1%	(10~30) ±1%	(10~30) ±1%	(10~50) ±1%	(15~70) ±1%

Detailed Photos
JS Sreies Concrete Mixer
PLD Batching Plant

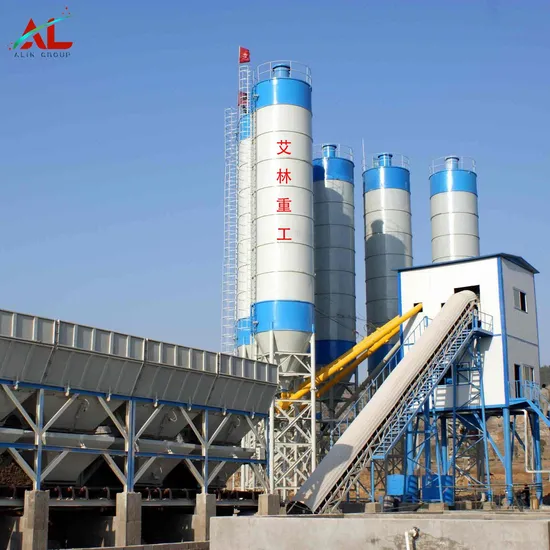

Real Project
Real Project
Company Profile
Company Profile
Shandong Alin Machinery Co., Ltd belongs to Alin group, which is leading machinery manufacturer and service provider in China. We have been specialized in concrete block making machine, cement concrete batching plant, concrete pump truck, concrete pouring boom, concrete mixer truck, tower crane, excavator, forklift, truck loader, road roller and so on. As one of the largest manufacturers in China, Alin Machinery is committed to providing customers with the excellent quality products and services.
Alin Machinery factory covers factory area of 500,000 square meters, workshop area of 150,000 square meters, with advanced machine tools, heat treatment machine, shot blasting machine, welding machine and other equipment. High precision and high quality products are rest assured. All of our products are in line with international standards. Our company passed through ISO9001 certification, and products passed CE certification. It fully demonstrates our strict control of product quality and high attention to customer's request.
Alin Manufacturing Group has a strong team of more than 2,000 technical workers, 80 senior engineers, 100 after-sales technicians and quality inspection technicians. They have rich experience and professional knowledge to provide customers with a full range of technical support and perfect after-sales service. In addition, we regularly send marketing and technical personnel abroad to provide technical service to agents and customers.
Let's join hand by hand to create a brilliant future!

Certification:
Customer Visit
Customer's satisfaction is our prode!

---
