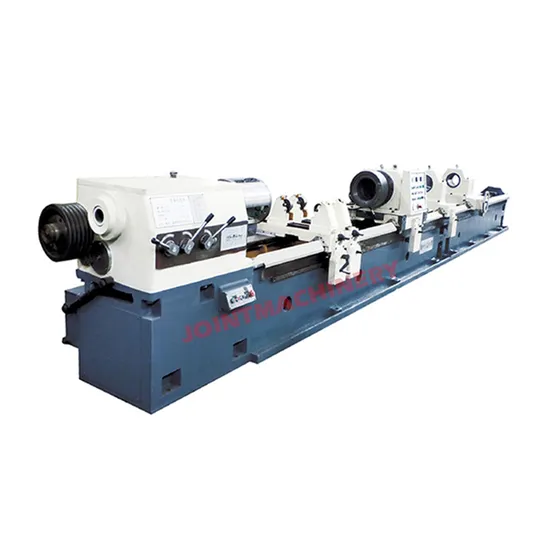

Large-Diameter Metal Deep Hole Drilling and Boring Machine Tools Ts2116

Product Description

The machine tool is specialized in processing cylindrical deep hole workpieces, such as processing the spindle hole of the machine tool, various mechanical hydraulic cylinders, cylinder cylindrical through-holes, blind holes and step holes. The machine tool can not only undertake drilling and boring, but also can perform rolling processing. Use internal chip removal method when drilling. The machine tool bed has strong rigidity and good accuracy retention.
The spindle speed range is wide, and the feed system is driven by AC servo motor, which can adopt to the needs of various deep hole processing processes. The oil feeder fastening and workpiece top tightening adopts hydraulic device, instrument display, safe and reliable.
Various change model products of the series can be supplied according to users requirement.
Large-Diameter Metal Deep Hole Drilling and Boring Machine Tools TS2116

Model		TS2116
Capacity	Range drilling dia	Φ25-Φ55mm
	Max boring dia	Φ160mm
	Max boring depth	1-12m
	Workpiece clamped dia range	Φ30-Φ220mm
Spindle	Height from spindle center to bed	250mm
	Spindle bore dia	Φ38mm
	Range of spindle speed	5-1250r/min 2 kinds
Feeds	Feed speed range (infinite)	5-500mm/min
	Carriage rapid-moving speed	2m/min
Motors	Main motor power	15kw Frequency conversion speed regulation
	Hydraulic motor power	1.5kw, n=980r/min
	Carriage rapid motor power	3kw
	Feed motor power	3.6kw (Servo motor)
	Coolant motor power	5.5kw*2 + 7.5kw
Others	Guide rail width	500mm
	Rated pressure of cooling system	2.5MPa / 4MPa
	Flow of cooling system	100, 200, 300L/min
	Rated pressure for hydraulic system	6.3MPa
	Oli coolant grant bearing max axial force	68KN
	Oil coolent grant max preload for workpiece	20KN
Optional	Range of spindle speed (drilling box)	5-1250r/min 2 kinds
	Main motor power	15kw

Overall Dimensions and Weight

Length	1000	2000	3000
Floor space L*W*H (mm)	6600*2800*1500	8600*2800*1500	10600*2800*1500
Net weight (T)	8	10	12

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
