Basic Info.
Type
Concrete Mixing Plant
Machining Process
Concrete Wet Mix
Certification
ISO9001: 2000, CE
Aggregate Batcher
PLD3200
Aggregate Feeding Mode
Belt Conveyor
Max. Aggregate Size (mm)
60/80
Discharging Height (M)
4.1
Transport Package
Container Transportation
Product Description
Production Description

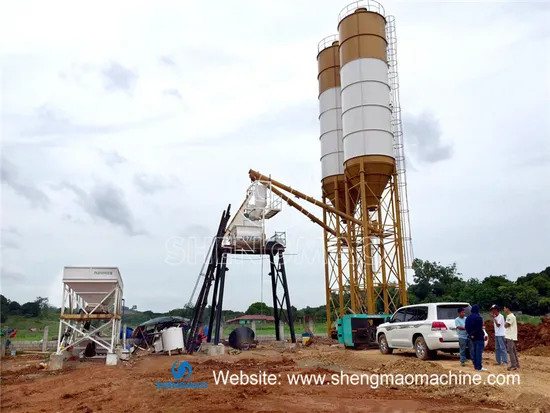

Stationary concrete batching plant:
Stationary concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply, etc. It is an ideal choice for the production of high-quality concrete with a large amount of demand.
According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.
| Skip hoist type concrete batching plant |
| Model | HZS25 | HZS35 | HZS50 | HZS75 |
| Production capacity (m3/h) | 25 | 35 | 50 | 75 |
| Concrete mixer | JS500 | JS750 | JS1000 | JS1500 |
| Aggregate feeding mode | Skip Hoist | Skip Hoist | Skip Hoist | Skip Hoist |
| Aggregate size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 3.8 | 3.8 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight (T) | 10 | 13.5 | 18.5 | 25 |
| Total power (T) | 65 | 75 | 100 | 110 |
| Control system | Panel | Computer | Computer | Computer |
Skip hoist type concrete batching plant Features compared to belt type batching plant:
1.Cost-saving;
2.Easy to install;
3.Easy to move to other job sites;
4.Labor-saving.
| Belt conveyor type concrete batching plant |
| Model | HZS60 | HZS90 | HZS120 | HZS180 |
| Production capacity (m3/h) | 60 | 90 | 120 | 180 |
| Concrete mixer | JS1000 | JS71500 | JS2000 | JS3000 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 4.1 | 4.1 | 4.1 | 4.1 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Fly ash weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Total weight(T) | 28 | 40 | 65 | 88 |
| Total power(T) | 110 | 156 | 200 | 260 |
| Control system | Computer | Computer | Computer | Computer |
Belt conveyor type concrete batching plant Features compared to skip hoist type batching plant:
1. higher production efficiency;
2. more environment-friendly;
3. higher quality of concrete.
Detailed Images
Packing&Shipping
Our Oversea cases
Our service
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;2.Making design drawings as per customers' requirements;3. Providing quotations.
In-sale Service
1. Strictly control all prodedures from raw materials sourcing to pre-assembly to ensure product quality;2. Regularly updating production production progress to clients;3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;4. Proper packing to minimize the risk that the machines are damaged during transportation;5. Foundation drawing will be provided for clients to make foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.3. Arranging engineers to go to client's job site. The engineers will help clients with the machine installation, machinetest-running and operators training etc.4. Spare parts supply;5. Job site visiting every year
CE Certificate
>>
