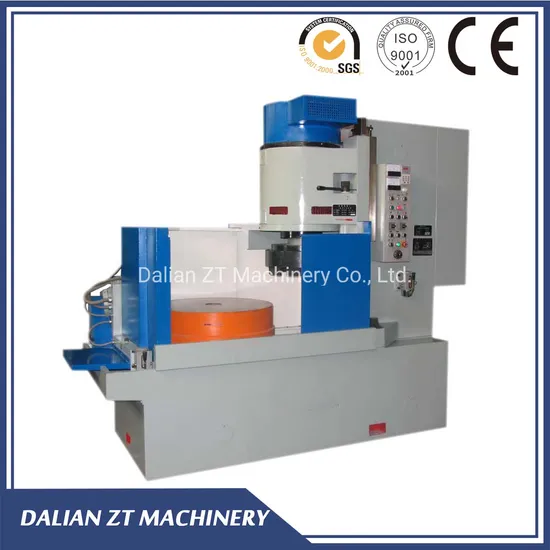

M7480E Vertical Spindle Surface Grinding Machine with Rotary Table

Product Description

Features:
M74 Vertical surface grinding machine with rotary table
The grinding range is from dia. 500mm to 2500mm. This series of grinding machine is mainly used for the industry needing grinding process, such as circular saw blade, automobile parts and components, tool and guage, bearing, mold and mold holder, magnetic material, hydraulic parts etc.

Item	M7480E
Table diameter	Φ800mm
Table speed	5-20rpm
Max. Swing dia. of workpiece	Φ850mm
Table movement	440mm
Total machine power	37kW
Max. Loading of table	700kg
Grinding wheel size(ODxIDxH)	450x380x150mm
Spindle speed of grinding head	980rpm
Grinding head motor	30kW
Max. Grinding size(DxH)	Φ800x320mm
Roughness of machining surface	Ra0.8um

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
