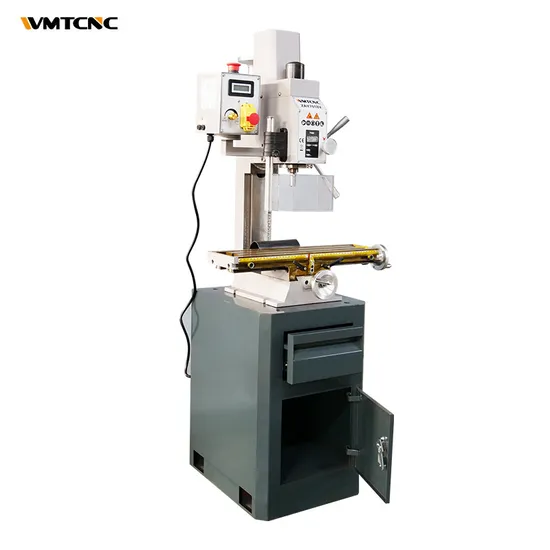

High quality ZAY7018V small drilling and milling machine for metal processing

Product Description

Product Description
WMTCNC bench manual milling and drilling machine ZAY7018V main features:
1. Milling, drilling, tapping, reaming, boring.
2. The spindle box can be rotated ±90° in vertical direction.
3. Brushless Motor Durable Power Output Uniform Torque Constant.
4. The column stands on the base with good rigidity.
5. The main shaft is supportedwith powerful high-load tapered roller bearings.
6. The spindle can be locked and the machine head can be raised and lowered.
7. The limit position of the worktable is adjustable.
8. Accurate positioning, strong rigidity and large cutting force.

Specification	ZAY7018V
Speed Range	50-2250 rpm
Spindle Taper	MT2
Spindle Travel	50mm
Max Drilling Capacity	18 mm
Max end Milling Capacity	Φ12mm
Max Face Milling Capacity	Φ50mm
Swivel Angle of Milling Head	±90°
Distance From Spindle Axis to Column	170mm
Distance From Spindle to Table	80mm
Vertical Travel (Z)	195mm
Longitudinal Travel (X)	360mm
Cross Travel(Y)	140mm
Worktable Size	500*140mm
T Slot Size (Number/Size/Spacing)	3-10mm-45mm
Motor	600W/220V
Machine Weight	73kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
