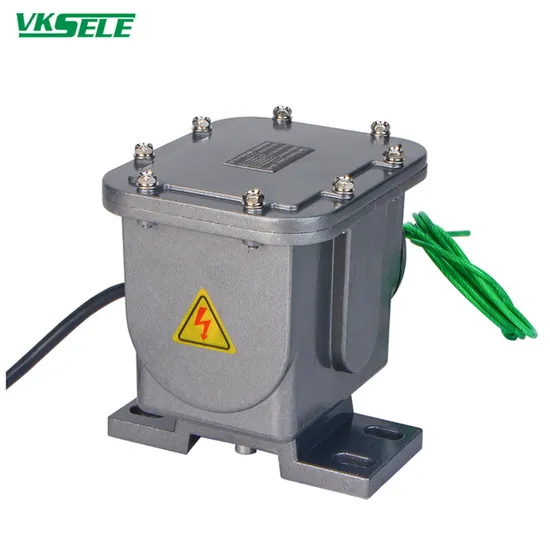

AC380V 5A Automatic Reset Automatic Longitudinal Tear Switch (Gray) Tb-100

Product Description

Product Description Slit switches provide an alarm signal to the monitor or shut down the conveyor in case of tears, punclures, damaged juncions or sharp objects protruding from the belt. The rip switches are mounted in pairs on both sides of the conveyor belt. They are connected by two sections of wire rope. One end of the wire rope is fixed to the support bracket and the other end is attached to the pull ring of the rip switch, The two sections of wire rope form a monitoring surface under the conveyor belt, When an object ortorn bel is suspended down and swept down to the wire rope, the wire rope puls the tear switch pull ring to make it move and the tear switch sends out an alarm or stop signal. Working principle: When an emergency occurs on the belt transport site, pull the aviation wire rope tied to the lifting lug to make the slider in the machine with the switch, and issue the stop signal, After loosening the wire rope, the switch automatically reset. Installation and use: The switch is balanced on the rack fixing bracket.
Install the switch on both sides of the tape in the right form, connect the two switch pull rings with the wire rope, and use the lifting ring to make the wire rope walk parallel to the tape.Rope pulling action should be appropriate to ensure a reliable switch reset.Multiple pairs of switches can be installed with one tape.Mounting brackets are not supplied with the switch and need to be purchased separately. Product Parameters :

Product Name	Automatic Longitudinal Tear Switch(Gray)	Model	Tear switch DB-100
Movement Power	5KG	Ambient temperature	-30°-+60°C
Ultimate Stroke	25mm	Reset Mode	Automatic reset
Number of contacts	2 Micro Switch	Contact capacity	AC380V 5A

Zhejiang Weikesen Power Technology Co., Ltd. was established 15 years ago with a capital of 1 million euros. Is a professional sales of AC contactor, pull wire switch product design concept is based on market demand manufacturing products. The products have been loved by various industries throughout the country Through our continuous improvement of good quality and good market honor, we have won the unanimous praise of the market and a large number of foreign importers' favor and recognition.
Q1: Would you accept OEM/ODM ?
A1: Yes,we accept.OEM/ODM has a MOQ requirement.
Q2: Can we get samples ?
A2: Yes,you can get sample to test quality,but the freight for express is on buyer's account.
Q3: What's the payment term ?
A3:T, Western Union, MoneyGram,Paypal etc.
Q4: How's the delivery time ?
A4: Normally is 3-10 work days, lf the quantity is large,We need to negotiate.
Q5: What is the standard of package ?
A5:Normally are cartons, but also we can pack it according to requirement.
Q6: Could you offer Form E, C/O etc ?
A6: Sure, We can apply to CCPIT.
Q7: Are you a trading company or a manufacture ?
A7:We are the manufacturer& exporter in the industry so we can supply product for you with factory price.

---
