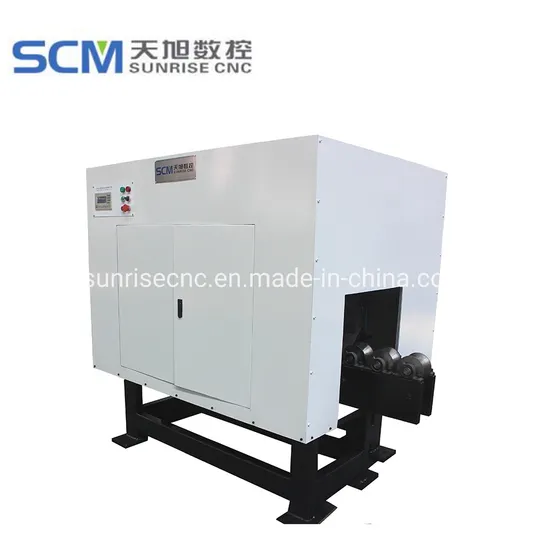

Angle Back (heel) Milling Machine

Product Description

1. Instructions:
1.1 The device uses high-speed milling for back of angle milling processing technology.
1.2 Greatly improving the milling production efficiency, ten times faster than the traditional processing.
1.3 Easily operate, low requirement for the worker's operation level.
1.4 Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.
1.5 Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.
1.6 The machine is easy to operate, flexible regulation and stable operation.
2. Specifications:
Power of motor: 12 KW
Power single spindle: 5.5KW
Voltage: 380V, 50Hz
Air pressure: 0.6MPa~0.8MPa
Cutting speed: 0~400 mm/min
Cutter head diameter: 200mm ( replaceable cutter blade )
Feeding speed: 0~450mm/min ( Variable Frequency Drive Adjustment )
Spindle rotate speed: 300rpm
Number of spindle: 2 pc
Number feeding motor: 2 pc
Number pressing air cylinder: 4 pc
Range of process angel steel: L80×80×6~L360×360×35
length of process angel steel: 300mm~+∞
Computed mode: data input Touch screen have compensation function
Workpiece process
Back milling process: Adjust the milling depth. Direct input in the touch screen for blade Angle of the milling depth, blade adjustment button, cutter head automatically adjusts to the chip position, equipment according to the preset parameters, automatically calculate the cutting speed. Press the spindle start button to start the back-off spindle. Press the spindle feeding button to start feeding. Put the angle steel on the feeding rack, which is driven by the stick of the rack, automatically feeding and production. After the production, the end product will be automatically sent out of the feed frame.

Angle steel milling back depth reference table and use tools
Angle sizes (material)	Recommended the radius	(1.5 mm gap) lining heel milling deep processing	Recommend the use of tools
63	R7	4.4	R20
70	R8	4.8	R20
75	R9	5.2	R20
80	R9	5.2	R20
90	R10	5.6	R20
100	R12	6.5	R20
110	R12	6.5	R20
125	R14	7.3	R20
140	R14	7.3	R20
160	R16	8.1	R24
180	R16	8.1	R24
200	R18	9	R24
220	R20	9.8	R28
250	R22	10.6	R28
320	R28	13.1	R35

5. Main component list

No	Name	Remark
	Touch screen	DELTA
	PLC	DELTA
	Wire drawing encoder	OMRON
	Frequency converter	DELTA
	Midget relay
	Circuit breaker
	AC Contactor
	Intermediate relay
	Thermal relay
	Button switch
	Air cylinder	SMC / AirTAC

6. Packing list

No.	Name	Unit	Quantity	Remark
1	Main machine	Set	1
2	Control cabinet	Set	1
3	Adjustment tool	Set	1
4	Flat cutter base	Set	1
5	Arc cutter base	Set	1
6	Air gun	pc	1
7	Manual book	Set	1

---
