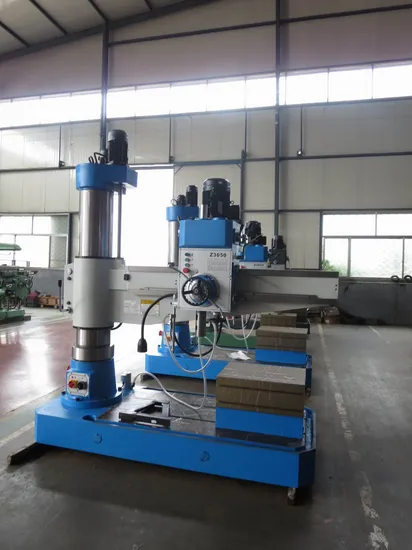

| SPECIFICATION | UNITS | Z3050×16 |
| Max. drilling diameter | mm | 50 |
| Distance between spindle axis and column | mm | 350-1600 |
| Distance spindle nose and work surface of base | mm | 320-1220 |
| Rocker arm lifting distance | mm | 580 |
| Rocker arm lifting speed | m/s | 0.02 |
| Spindle travel | mm | 315 |
| Spindle taper | Morse | 5 |
| Range of spindle speeds | r/min | 25-2000 |
| Number of spindle speeds | step | 16 |
| Range of spindle feeds | mm/r | 0.04-3.20 |
| Number of spindle feeds | step | 16 |
| The maximum torque of the spindle | N.M | 500 |
| Spindle maximum feed resistance | N | 18000 |
| Table size | mm | 630×500 |
| The spindle box of horizontal moving distance | mm | 1250 |
| Spindle motor power | kw | 4 |
| Hydraulic clamping motor power | kw | 0.75 |
| Cooling pump motor power | kw | 0.09 |
| Arm lift motor power | kw | 1.5 |
| Machine weight | kg | 3500 |
| Overall dimension | mm | 2500x1070x2840 |
