Plastic Bottle Blow Molding Machine

Product Description

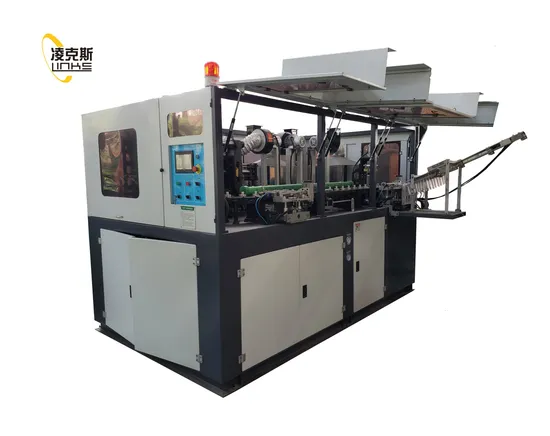

Automatic 4-Cavity PET Bottle Blow Moulding Machine
*Introduction and Advantage
1). This PET Bottle Blowing Machine adopts the new type double bend arm and four pull rod-clamping structure (won the patent). Cross direction; middle mould board is move parallel; the distance between two mold bases is adjusted by the chain wheel. Thus, the clamping force is very strong.
2). The plastic bottle making machine frame is produced by the whole complete casting bottom, so that the machine is firm and running stable.
3). Full automatic plastic bottle blowing machine the straight slide way, reduce the friction and lengthen the life of the machine.
4). Double start working button, which is designed for avoiding the injury.
5). Power saving design that can increase your profits.
6). The single direction of pre-form placing and bottle picking, which increase the output.
7). Segregate type air controlling system, which is designed for avoiding waste pollution.
8). The stretching air cylinder is adjusted parallel from front to back, from left to right freely by regulator.
*Parameters

Model		LK-2000	LK-4000L	LK-6000
Theoretical Output(b/h)		2200	4000	6000
Clamping System	Cavities	2	4	6
	Clamping Unit(Kg)	20000	48000	56000
	Mold Stroke(mm)	120	130	90
	Stretch Stroke(mm)	320	340	250
	Bottom Stroke(mm)	30	30	30
	Cavity Pitch(mm)	120	120	120
	Heating Pitch(mm)	55	55	55
	Number of Holders(pcs)	64	114	114
Container	Max. Container Volume(L)	2	2	0.6
	() Max. Neck Diameter(mm)	32/38	38	38
	Max. Preform Height(mm)	140	140	100
	Max. Container Diameter(mm)	105	110	65
	Max. Container Height(mm)	320	340	250
Electrical System	Heating Oven	2×9	4×4	8×8
	× Box × Channel	2×9	4×12	8×7
	Number of Lamp(pcs)	18	48	56
	Heating Power(kw)	21.6	57.6	67.5
	Installed Power(kw)	25.5	65	75
	Voltage(V)	220V/380V/3phases
Air System	Blowing Pressure(Mpa)	3.5	3.5	3.5
	High Pressure Air Consuming(L/min)	2000	4200	5600
Chiller System	Temperature(c)	10-15
	Pressure(Mpa)	0.3-0.5	0.3-0.5	0.4
	Flow Rate(L/min)	40	80	80
	Heating Power(HP)	4	5	5
Machine	(L×W×H) Machine Dimension(mm)	2600×1800×1800	3800×2000×2000	4800×2200×1800
	Weight(kg)	3500	6000	5500

*About Links Machinery

FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work

---
