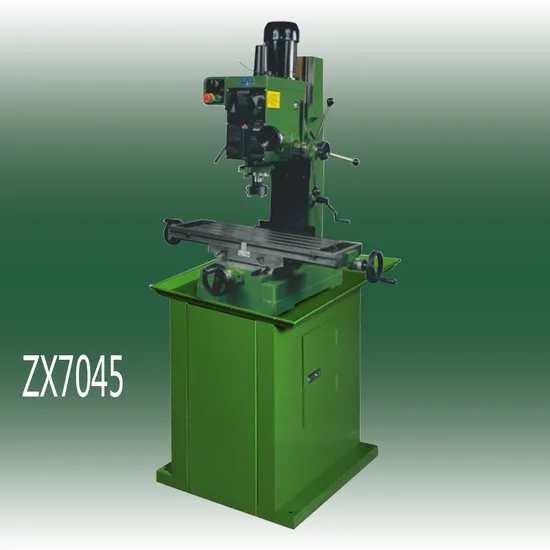

Zx7045 Small Bench-Type Milling and Drilling Machine Benchtop Milling Machine for Sale

US$2,535.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZX7045
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
750W
Max Drilling Capacity
45 mm
Transport Package
Wooden Case
Specification
112x82x113cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model ZX7045 ZX-40A ZXD-40
Max.drilling capacity 45mm(Cast iron)/28mm(Steel) 40mm 40mm
Width of face milling 80mm 80mm 80mm
Diameter of vertical milling 28mm 28mm 28mm
Spindle travel 120mm 120mm 120mm
Distance spindle axis to column surface 260mm 260mm 272.5mm
Max.distance spindle nose to worktable 475mm 490mm 500mm
Max.Distance spindle nose to base 1230mm
Spindle taper MT.4 MT.4 or R8 MT.4
Spindie speeds range 95-1600rpm 80-1760rpm 80-1760rpm
Spindle speeds 6 6 6
Dimension of table 820x240mm 730x210mm 730x210mm
Travel of worktable 550x200mm 500x175mm 500x200mm
Overall height 1040mm 1100mm 1765mm
Head stock 410mm 410mm 340mm
Motor 750W 1100W 1100W
G.WJN.W. 340/305kg 330/285kg 470/400kg
Ship measurement 112x82x113cm 108x77x114cm 87x90x187cm
