High Efficiency Motor

Product Description

Product Brief

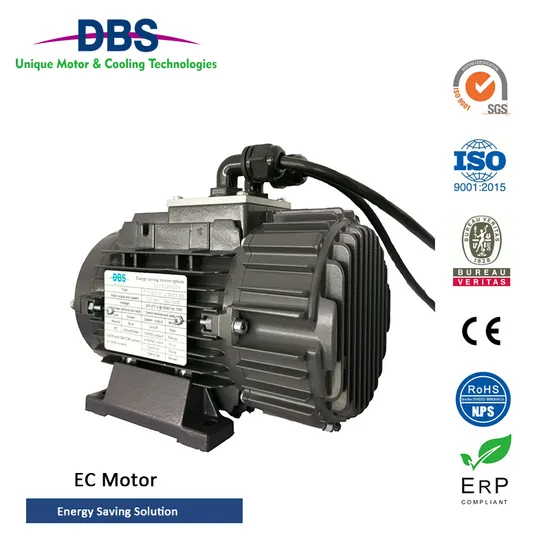

E-MAX motor is the special designed permanent magnet synchronous motor based on the IEC norm. E-MAX PMSM will be used for next generation which need more energy saving product. Exceed IE4 variable speed AC motor (IEC60034-30-2-2016).
E-MAX motor is the first generation of DBS EC motor. E-MAX has led to develop the next generation of technology in motor efficiency and performance.
E-MAX motor contain two series:
E-Max commercial
IEC Frame 71 to 90 permanent magnet synchronous motor integrated drive
E-Max Industrial
IEC Frame 71 to 132 permanent magnet synchronous motor
E-Max Commercial series (ECI series)

Model	Frame	Rated	Output	Output	Maximum
	size	torque	@1500rpm	@3000rpm	speed
		(Nm)**	(kW)	(kW)	(rpm)
T71ECI01X36	71	1.2	0.2	0.41	3600
T71ECI02X36		2.4	0.41	0.82	3000
T71ECI03X18		3.2	0.55	-	1800
T90ECI03X36	90	3.2	0.55	1.1	3600
T90ECI05X30		4.8	0.75	1.5	3000
T90ECI07X18		7	1.1	-	1800

** The rated torque is based on the motor cooling method. The detail torque please see data sheet.
E-Max Commercial Motor Drive Function
CW/CCW chooseStart-stop terminal0-10VDC speed controlRS485 ModbusSpeed hand control by adjustable resistanceSpeed feedback
E-Max Industrial series (EC series)

Model	Frame	Rated	Output	Output	Maximum
	size	torque	@15000rpm	@3000rpm	speed
		(Nm)**	(kW)	(kW)	(rpm)
T71EC01X36	71	1.2	0.2	0.41	3600
T71EC02X36		2.4	0.41	0.82	3600
T71EC03X36		3.2	0.55	1.1	3000
T90EC03X36	90	3.2	0.55	1.1	3600
T90EC05X36		4.8	0.75	1.5	3600
T90EC07X36		7	1.1	2.2	3600
T100EC10X36	100	9.5	1.5	3	3600
T100EC14X36		14	2.2	4	3600
T100EC19X30		19.1	3	5.5	3000
T132EC26X30	132	25.5	4	7.5	3000
T132EC35X30		35	5.5	11	3000
T132EC48X30		47.7	7.5	15	3000
T132EC59X30		58.9	9.2	18.5	3000
T132EC70X30		70	11	22	3000

** The rated torque is based on the motor cooling method. The detail torque please see data sheet.
Efficiency class
E-MAX motor has ultra-high efficiency both at full load and light load. The flat efficiency curve can save more energy when the motor drive the fan or pump in HVAC field.
Compare to IE4 motor efficiency class E-MAX
E-Max Commercial series
** System efficiency include the motor and drive efficiency.
E-Max Industrial series
** Efficiency is only motor efficiency.
Model number nomenclature
T 90 EC 03 V 36 C2 B14 P T1
1 2 3 4 5 6 7 8 9 10

Position	Character	Description
1	"T"	Product platform
2	"90"	Frame size: IEC 90#
3	"EC"	EC: permanent magnet motor ECI: permanent magnet motor with integrated drvie
4	"03"	Rated torque
5	"V"	Cooling method:
		G = General purposes, with fan and fan hood. IC411
		V = Ventilation applications, without fan and fan hood.
6	"36"	Maximum speed: 3600 rpm
7	C2	Power line connection method: T1 = Terminal box on top T2 = Terminal box on NDE C1 = No terminal box, power line from housing C2 = No terminal box, power line from NDE
8	B14	Mounting method: B3, B14, B5, B34, B35
9	P	P = Slid rail
10	T1	Voltage code: T1: 3 phase 360-440 V T2: 3 phase 200-240 V S1: 1 phase 200-240 V S2: 1 phase 115 V

VFD consideration
PMSM must drive by the VSD. The motor cannot connect to the normal AC power directly. The VSD can be the commercial drive with vector control or PM motor control mode. VSD need to be set up the correct motor parameter (see below table). The detail parameters can be find in the model data sheet.
Power choose consideration
The power and torque in above model list is the rated power or torque when the motor has not any cooling method (IC410). If the motor cooled by the wheel or the load the motor power can be larger. The detail running range please see detail model data sheet. Below chart is a sample to decide the power at different cooling condition.
Technology: Experienced on the fan, pump, compressor and motion application with permanent magnet motor design Motor model building and simulation, performance calculation, noise optimization Motor material database: silicon steel, magnet, copper, aluminum High precision test equipment and instrument
Manufacturing and quality control: Automatic winding machine to get better consistency Electrical test equipment Magnetic flux checking

---
