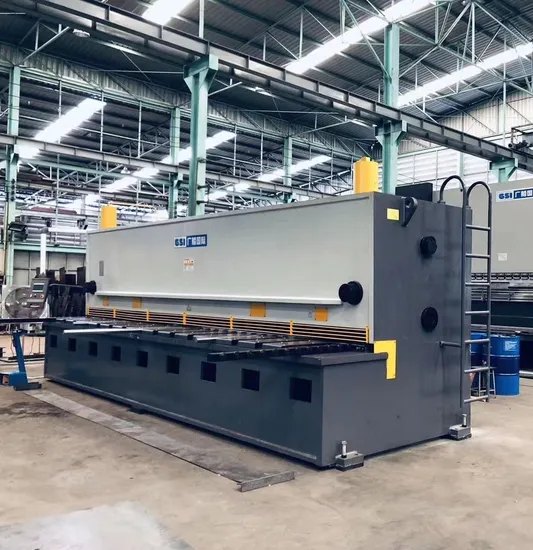

Hydraulic Shearing Machine Guillotine Shear for Sheet Metal Cutting

Product Description

Product DescriptionCNC HYDRAULIC GUILLOTINE SHEAR
Product Features:
-The frame is designed by finite element analysis, and welded with integral steel plate, it has good rigidity and stability.
-The frame adopts large CNC boring and milling machine for integral processing to ensure shearing accuracy and quality.
-The machine adopts a four-cylinder structure, the tool beam is suspended by the oil cylinder, there is no rigid connection, to reduces the failure rate.
-The tool carrier is supported by three rolling guide wheels to eliminates the shearing clearance and improves the shearing accuracy.
- Using four-blade scissors greatly improves the service life of the scissors.
-Blade clearance handwheel adjustment, dial display, adjustment is simple, intuitive and accurate.
Machine Frame
-The frame is a welded steel plate frame structure with good rigidity.
-There is a blade micro adjustment device on the workbench, which is convenient for adjusting the gap uniformity between the upper and lower blades.
-The workbench is also equipped with a feeding table, which is easy to operate.Ball Screw and Linear Guideway
Overturning the traditional sliding friction and replacing it with rolling friction, the friction coefficient is reduced, which can reduce driving torque, improve transmission efficiency, and ensure positioning accuracy.Electro Cabinet
- All electrical components are reliable and labeled accordingly;
- All wires are marked with wire numbers by using PVC pipes.
Servo Motor for Back Gauge Main Servo Motor Travel Switch
Main Technical Parameters of MK Series CNC Hydraulic Brake Plate Shears

No.	Model	Max.plate thickness (mm)	Max. plate length (mm)	Max. angle of plate ( °)	Back gauge operating range (mm)	Strokes (n/min)	Main Motor Power (kW)	Overall Dimension			Weight (kg)
								L(mm)	W(mm)	H(mm)
1	MK-6×2500	6	2500	1.5	20~750	16	11	3300	2000	1900	6000
2	MK-6×3200	6	3200	1.5	20~750	14	11	4000	2050	2000	7500
3	MK-6×4000	6	4000	1.5	20~750	12	11	4800	2100	2100	8700
4	MK-6×5000	6	5000	1.5	20~750	11	11	5800	2400	2450	13500
5	MK-6×6000	6	6000	1.5	20~750	10	11	6800	240	2500	17500
6	MK-8×2500	8	2500	1.5	20~750	14	15	3300	200	2000	6500
7	MK-8×3200	8	3200	1.5	20~750	12	15	4000	2000	2100	7500
8	MK-8×4000	8	4000	1.5	20~750	10	15	4800	2000	2150	9500
9	MK-12×2500	12	2500	0.5~2	20~1000	12	18.5	3300	2400	2000	8700
10	MK-12×3200	12	3200	0.5~2	20~1000	10	18.5	4000	2400	2100	11500
11	MK-12×4000	12	4000	0.5~2	20~1000	8	22.0	4800	240	2400	15000
12	MK-12×6000	12	6000	0.5~2.5	20~1000	6	30	7100	2600	2900	28000
13	MK-16×2500	16	2500	0.5~2.5	20~1000	8	30	3400	2400	2100	10500
14	MK-16×3200	16	3200	0.5~2.5	20~1000	7	30	4100	2400	2200	13000
15	MK-16×4000	16	4000	0.5~2.5	20~1000	6	37	4900	240	2300	18000
16	MK-16×6000	16	6000	0.5~2.5	20~1000	5	45	7100	2650	3000	30000
17	MK-20×2500	20	2500	1~2.8	20~1000	7	30	3500	240	2200	11000
18	MK-20×3200	20	3200	1~2.8	20~1000	6	30	4100	2450	2300	15000
19	MK-20×4000	20	4000	1~2.8	20~1000	5	37	4900	2500	2400	24000

View more products here, pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ1. Q: Are you a factory or a trading company?
A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.
2. Q: How to get a accurate quotation from you ?
A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.
3. Q: What's the payment terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment.
4. Q: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5. Q: Can you provide customized machine and tool?
A: Yes,we can design and manufacture according to your specific requirements.
6. Q: How do you guarantee your quality?
A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.
7. Q: Where is your factory located? How can I visit there?
A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
