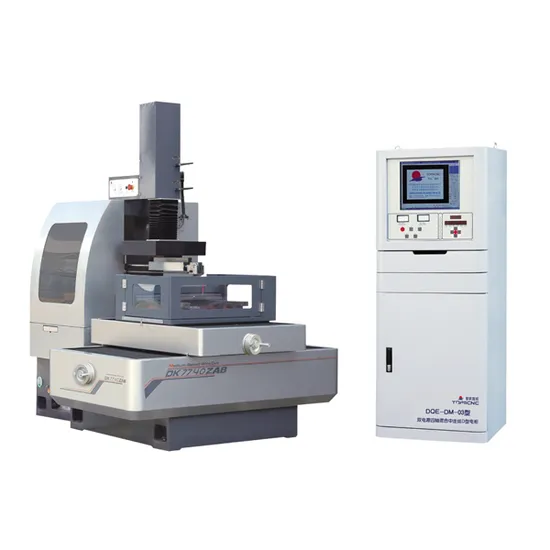

Topscnc CNC EDM Wire-Cut Multi Cutting Machine with ± 15° Cutting Angle

Product Description

Technique parameters

Technical parameter	Unit	DK7732ZAB	DK7740ZAB	DK7750ZAB	DK7763ZAB
Table size (W*D)	mm	440×680	540×760	640×1020	750×1180
Table travel (X*Y)	mm	320×400	400×500	500×630	630×800
Table size(U*V)	mm	140x140
Max. workpiece weight	kg	600	1000	1600	2000
Max. thickness of workpiece	mm	350
Max. taper angle/workpiece thickness		30°/80mm
Molybdenum Dia.	mm	φ0.15~φ0.2mm(recommend φ0.18mm)
Max. wire feed rate	m/sec	1~11.4m/sec frequency adjustable
Machining precision	mm	≤0.015
Max. machining speed	mm2/min	≥220
Surface roughness	μm	one time Ra≤2.5,three times Ra≤1.1 five times Ra≤0.9
Motor type		X,Y,U,V hybrid motor
axis controlled		4 axis simultaneous
Min.control pace	mm	0.001
Power supply		380V,3Ph,50Hz
Max. working current	A	10
P ower consumption	Kw	0.56
Work liquid		JR3A
Water tank	L	90
Filtering mode		Paper filter/Italy pump
Controller		DQE-DM-03/DQE-DC-01
Closed protective cover		standard
Machine weight	kg	1800	2400	2800	3800
Machine dimension	mm	1800×1400×2150	2100×1750×2250	2300×2100×2300	2600×2250×2350

Company Information
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.

TOPSCNC people wish to share success with you in the future!

TOPSCNC Customer
Our service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4)Engineers available to overseas repair service.
5) Payment Method: T/T or L/C at sight
6) Delivery time : 18--25 days
7) Packing : Standard export wooden cases
8)Port: Shanghai.
Contact us
Company: Jiangsu Dongqing CNC Machine Tool Co. Ltd.
Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China

Web: topscnc.en.made-in-china.com

---
