Sf6021professional Wood Pallet Board Automatic Double End Trim Crosscut Saw

Product Description

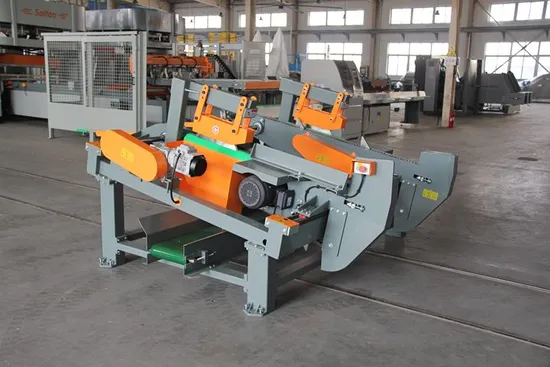

Sf6021 professional Wood Pallet Board Automatic Double End Trim Crosscut Saw
Product Description
Feature
Main used for wood double end trimming, double head saw, left cutter is fixed, right cutter is movable to cut different length.
Each cutter have separate motor, to ensure enough cutting capability for heavy timber.
Application
This is automatic double head trim saw, left is fixed, right head movable with hand crank, and with measure tape can know the cutting length.
Product Parameters

Model	SF6021
Cutting length	520-1500/2000mm
Cut off length	Left side max. 95mm, right side no limit
Cutting thickness	10-110mm
Cutting width	10-300mm
Feeding speed	Fixed 20m/min
Saw blade diameter	Inside Ø30mm outside Ø450mm 120T
Cutting accuracy	±1mm
Cutting motor	2*4kw
Cutting motor rotation speed	2830RPM
Feeding motor	2.2kw
Total motor power	10.2kw
Voltage	380v 50Hz 3 phase
Dust collection port	150mm*2pc+100mm*2pc
Machine size	2272*2426*1408mm
Packing size	2380*2150*1550mm
Machine weight	1355kg

Detailed Photos

Saw blade	Start button
Saw blade with safety cover and there are 2 pcs x100mm dust collection port.	One start button to start the machine feeding chain, saw blade and the conveyor, convenient for operation.

Outfeed arm with wheels	Packing, nailless plywood box
Outfeed arm with wheels, easier for transferring.	Packing, nailless plywood box, protection during transportation and easier for opening.

Electrical box	Handcrank
Each cutting head have separate motor, to ensure enough cutting capability for heavy timber.	Handcrank to adjust the sawing heads distance, and with digital display to show the distance.

Convey belt	Pressing mechanism
With convey belt to move away saw waste, thus to protect machine.	Pressing mechanism is adjustable for 3 levels based on the wood thickness, to ensure the wood waste won't fly away and more safe working.

Related Products

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine
SF7013	Double Heads Notcher
SF7030	Wood Pallet Chamfer Machine
SF7041	Pallet Round Corner Cutter Machine
SF6060	Wood Cross Cut Off Saw
SF6021	Wood Double Heads Trim Saw Machine
SF8005	Multi Heads Trim Saw

Certifications
Packaging & Shipping
1.Packing details: Warrping film with plywood box or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China.
We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter. 1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box. 3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
8.After sale service
1) Seller will send engineer (Chinese speaking, buyer prepare translator) to service in site, all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and insurance cost, hotel and eating responsible by buyer, and extra labor salary. 2) If travel abroad is impossible, then we will send you videos for installation and operation, and supply online guide from WeChat/WhatsApp, some of our customers work the machines properly through this way. We have English videos for almost every machine, videos about the installation steps, operation steps, maintenance steps, most our customer use the machine succeed base on our videos. 3) Warranty in 1 year since buyer receive the machine. In warranty period seller will supply Free parts and online service exclude, Easy wearing parts (saw blade, cutters, motor belt,small electric components). Damage by wrong operation. Out of warranty period seller supply paid parts, Lifelong responsibility. And our Aftersales service team can supply free online support in 6 days per week, 10+ hours per day. Below some pictures for your reference. FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.

---
