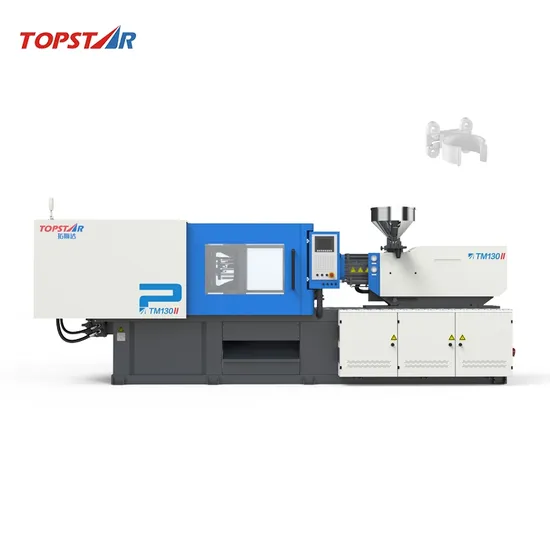

High Efficiency Servo System TM130II Injection Molding Machine for PVC Pipe

Product Description

Topstar 90-470Ton Horizontal Injection Molding Machine for Households Plastic Products

Product Description:
The TM II series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Strong engine, efficiency increase.
2. Configuration promoted, stable to use.
3. Optimized design, energy saving and reliable.
4. Highly integrated, accurate and efficient.
Accessory Introduction:
1. Standard KEBA controller, PHASE motor, DELTA drive, with self-developed control program, more precise production control.
2. Standard configuration of plating screw and temperature control of the offload, higher production efficiency, and wider application range of rubber materials.
3. Optimized clamping design, higher strength and more stable.
4. Diagonal double carriage cylinders and linear guide, more accurate and stable injection.
5. Pre-plasticizing adopts proportional back pressure control, easy to operate. Multi-stage back pressure setting can be realized, with higher precision and improved plasticization quality.
6. Precision PVD alloy screw head set, adapt to a wider range of plasticizing requirements.
Parameter Table:

INJECTION UNIT	UNITS	TM130II
Screw Diamete	mm	36	40	45
Screw L/D Ratio	L/D	22.2	20.0	17.8
Screw Stroke	mm	170	170	170
Shot Volume	cm3	173	214	270
Shot Weight(ps)	g	157	194	246
	oz	5.5	6.8	8.7
Injection Pressure	kgf/cm3	2301	1864	1473
Injection Rate	cm3/s	122	151	191
Injection Rate	mm/s	120	120	120
Screw Speed	rpm	260
Nozzle Contact Force	t	4.2
Nozzle Stroke	mm	260
CLAMPING UNIT	UNITS	TM130II
Clamping Force	t	130
Opening Stroke	mm	360
Platen size(H×V)	mm	600*600
Space Between Tie Bars(H×V)	mm	410*410
Mlould Thickness (Min)	mm	150
Mlould Thickness (Max)	mm	460
Max. Daylight	mm	820
Ejector Force	t	5.5
Ejector Stroke	mm	120
Locating Ring	mm	100
POWER/HEATING UNIT	UNITS	TM130II
System Pressure	kgf/cm3	175
Pump Power	kw	18
Heating Power	kw	9.7
Number of Temp Control Zones	-	3+1
OTHERS	UNITS	TM130II
Machine Dimensions(LxWxH)	m	4.74*1.23*1.88
Oil Tank Capacity	L	150
Machine Weight	t	3.7
Platen Dimensions
Platen Dimensions

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.

---
